Product Summary

The ATMEGA324PA-AU is a 8-bit microcontroller.

Parametrics

ATMEGA324PA-AU common dimensions: (1)A: 4.826mm max; (2)A1: 0.381mm min; (3)D: 52.070 to 52.578mm; (4)E: 15.240 to 15.875mm; (5)E1: 13.462 to 13.970mm; (6)B: 0.356 to 0.559mm; (7)B1: 1.041 to 1.651mm; (8)L: 3.048 to 3.556mm; (9)C: 0.203 to 0.381mm; (10)eB: 15.494 to 17.526mm.

Features

ATMEGA324PA-AU features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Nonvolatile Program and Data Memories; (4)JTAG Interface; (5)Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes; (6)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode.

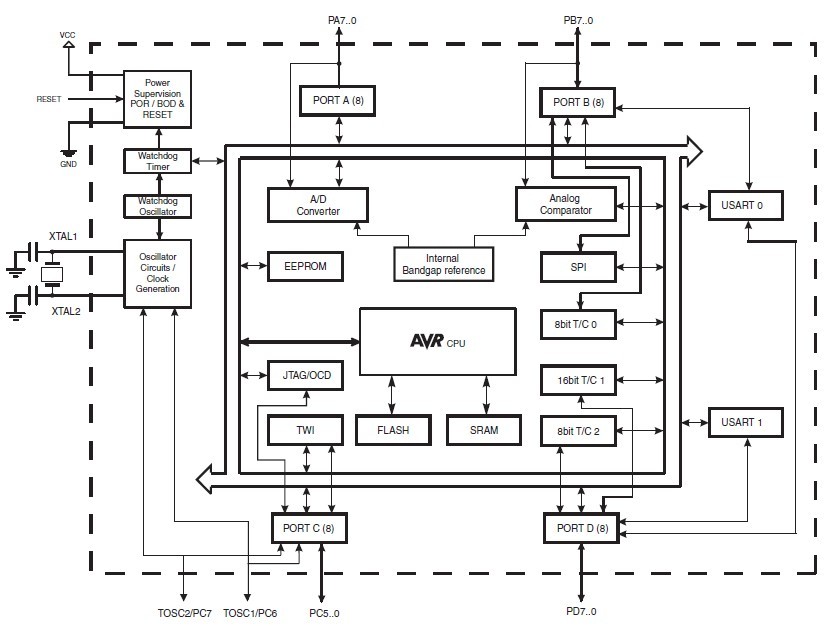

Diagrams

ATMEGA324PA-AU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATMEGA324PA-AU
ATMEGA324PA-AU

Atmel

8-bit Microcontrollers (MCU) AVR 32KB 1KB EE 20MHz 2KB SRAM 5V

Data Sheet

0-1: $3.46
1-10: $2.89
10-25: $2.17
25-100: $1.96
ATMEGA324PA-AUR
ATMEGA324PA-AUR

Atmel

8-bit Microcontrollers (MCU) AVR 32KB FLSH 1KB EE 2KB SRAM-20MHz IND

Data Sheet

0-1670: $1.99
1670-2000: $1.99
