Product Summary
The ATMEGA169PA-AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA169PA-AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA169PA-AU absolute maximum ratings: (1)Program Memory Size: 16KB (8K × 16); (2)RAM Size: 1K × 8; (3)Number of I /O: 54; (4)Package / Case: 64-TQFP; (5)Speed: 16MHz; (6)Oscillator Type: Internal; (7)Packaging: Tray; (8)Program Memory Type: FLASH; (9)EEPROM Size: 512 × 8 ; (10)Core Processor: AVR; (11)Data Converters: A/D 8×10b; (12)Core Size: 8-Bit; (13)Operating Temperature :-40 ~ 85℃; (14)Connectivity: SPI, UART/USART, USI; (15)Peripherals: Brown-out Detect/Reset, LCD, POR, PWM, WDT; (16)Voltage - Supply (Vcc/Vdd): 1.8 V ~ 5.5 V.
Features
ATMEGA169PA-AU features: (1)4 × 25 Segment LCD Driver; (2)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (3)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (4)Real Time Counter with Separate Oscillator; (5)Four PWM Channels; (6)8-channel, 10-bit ADC; (7)Programmable Serial USART; (8)Master/Slave SPI Serial Interface; (9)Universal Serial Interface with Start Condition Detector; (10)Programmable Watchdog Timer with Separate On-chip Oscillator; (11)On-chip Analog Comparator; (12)Interrupt and Wake-up on Pin Change.

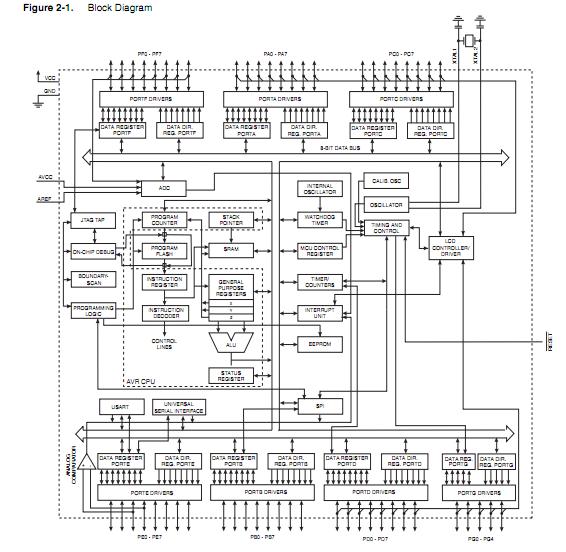

Diagrams
