Product Summary

The ATMEGA162-16PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA162-16PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The device is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, In-Circuit Emulators, and evaluation kits.

Parametrics

ATMEGA162-16PU absolute maximum ratings:(1)Operating Temperature:-55℃to +125℃; (2)Storage Temperature:-65℃to +150℃; (3)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (5)Maximum Operating Voltage:6.0V; (6)DC Current per I/O Pin:40.0 mA; (7)DC Current VCC and GND Pins:200.0 mA PDIP,400 mA TQFP/MLF.

Features

ATMEGA162-16PU features:(1)High-performance, Low-power AVR8-bit Microcontroller; (2)Advanced RISC Architecture:131 Powerful Instructions Most Single-clock Cycle Execution;32 x 8 General Purpose Working Registers;Fully Static Operation; Up to 16 MIPS Throughput at 16 MHz;On-chip 2-cycle Multiplier; (3)Non-volatile Program and Data Memories:16K Bytes of In-System Self-programmable Flash Endurance: 10,000 Write/Erase Cycles; Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation; 512 Bytes EEPROM Endurance: 100,000 Write/Erase Cycles;1K Bytes Internal SRAM;Up to 64K Bytes Optional External Memory Space;Programming Lock for Software Security; (4)JTAG (IEEE std. 1149.1 Compliant) Interface:Boundary-scan Capabilities According to the JTAG Standard;Extensive On-chip Debug Support;Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface; (5)Peripheral Features:Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes;Two 16-bit Timer/Counters with Separate Prescalers, Compare Modes, and Capture Modes;Real Time Counter with Separate Oscillator;Six PWM Channels;Dual Programmable Serial USARTs;Master/Slave SPI Serial Interface; Programmable Watchdog Timer with Separate On-chip Oscillator;On-chip Analog Comparator.

Diagrams

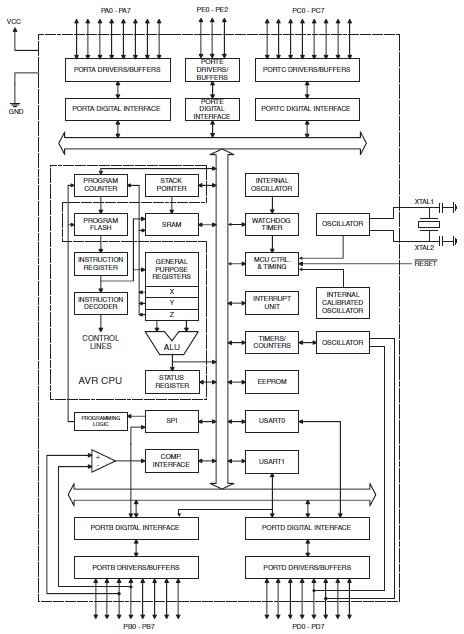

ATMEGA162-16PU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATMEGA162-16PU
ATMEGA162-16PU

Atmel

8-bit Microcontrollers (MCU) 16kB Flash 0.5kB EEPROM 35 I/O Pins

Data Sheet

0-1: $4.06
1-10: $3.39
10-25: $2.55
25-100: $2.30
