Product Summary

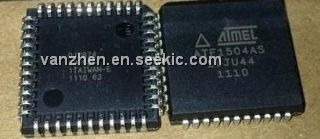

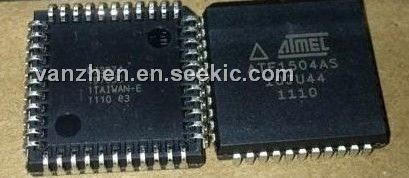

The ATF1504AS-10JU44 is a high-performance, high-density complex programmable logic device (CPLD) that utilizes Atmel proven electrically-rasable memory technology. With 64 logic macrocells and up to 68 inputs, the ATF1504AS-10JU44 easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. enhanced routing switch matrices of the ATF1504AS-10JU44 increase usable gate count and the odds of successful pin-locked design modifications.
Parametrics
ATF1504AS-10JU44 absolute maximum ratings: (1) Temperature Under Bias: -40°C to +85°C; (2) Storage Temperature: -65°C to +150°C; (3) Voltage on Any Pin with respect to Ground: -2.0V to +7.0V; (4) Voltage on Input Pins with Respect to Ground During Programming: -2.0V to +14V; (5) Programming Voltage with Respect to Ground:-2.0V to +14V.
Features
ATF1504AS-10JU44 features: (1) High-density, High-performance, Electrically-erasable Complex Programmable Logic Device:64 Macrocells, C5 Product Terms per Macrocell, Expandable up to 40 per Macrocel, C44, 68, 84, 100 Pins, 7.5 ns Maximum Pin-to-pin Delay, CRegistered Operation up to 125 MHz, CEnhanced Routing Resource; (2) In-System Programmability (ISP) via JTAG; (3) Flexible Logic Macrocell; (4) Advanced Power Management Features; (5) Available in Commercial and Industrial Temperature Ranges; (6) Available in 44-, 68-, and 84-lead PLCC; 44- and 100-lead TQFP; and 100-lead PQFP; (7) Advanced EE Technology; (8) TAG Boundary-scan Testing to IEEE Std. 1149.1-1990 and 1149.1a-1993 Supported; (9) PCI-compliant; (10) Security Fuse Feature; (11) Green (Pb/Halide-fee/RoHS Compliant) Package Options.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATF1504AS-10JU44 |
Atmel |
CPLD - Complex Programmable Logic Devices CPLD 64 MACROCELL w/ISP STD PWR 5V |
Data Sheet |
|
|
||||||||||||
