AT91SAM7X512-AU

AT91SAM7X512-AU, Flash microcontroller, 4.0V, 200 mA, 15 ms, LQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: AT91SAM7X512-AU

Brand:: ATMEL Corporation - ATMEL | Pack: LQFP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:AT91SAM7X512-AU
US $0.30 - 0.50
AT91SAM7X512-AU

US $8.00 - 8.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

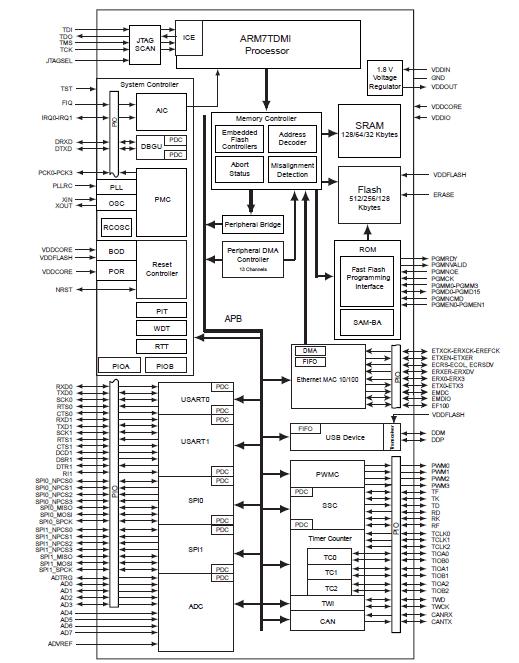

The AT91SAM7X512-AU is a highly integrated Flash microcontroller based on the 32-bit ARM RISC processor. The AT91SAM7X512-AU features 512/256/128 Kbyte high-speed Flash and 128/64/32 Kbyte SRAM, a large set of peripherals, including an 802.3 Ethernet MAC and a CAN controller. A complete set of system functions minimizes the number of external components.

Parametrics

AT91SAM7X512-AU absolute maximum ratings: (1)Operating Temperature (Industrial): -40℃ to + 85℃; (2)Storage Temperature: -60℃ to + 150℃; (3)Voltage on Input Pins with Respect to Ground: -0.3V to + 5.5V; (4)Maximum Operating Voltage(VDDCORE, and VDDPLL): 2.0V; (5)Maximum Operating Voltage(VDDIO, VDDIN and VDDFLASH): 4.0V; (6)Total DC Output Current on all I/O lines 100-lead LQFP package: 200 mA.

Features

AT91SAM7X512-AU features: (1)512 Kbytes (SAM7X512) Organized in Two Banks of 1024 Pages of 256 Bytes (Dual Plane); (2)256 Kbytes (SAM7X256) Organized in 1024 Pages of 256 Bytes(Single Plane); (3)128 Kbytes (SAM7X128) Organized in 512 Pages of 256 Bytes(Single Plane); (4)Single Cycle Access at Up to 30 MHz in Worst Case Conditions; (5)Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed; (6)Page Programming Time: 6 ms, Including Page Auto-erase,Full Erase Time: 15 ms; (7)10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities, Flash Security Bit; (8)Fast Flash Programming Interface for High Volume Production.
