Product Summary

The AT89S8253-24AU is a low-power, high-performance CMOS 8-bit microcontroller with 12K bytes of In-System Programmable (ISP) Flash program memory and 2K bytes of EEPROM data memory. The AT89S8253-24AU is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set and pinout.

Parametrics

AT89S8253-24AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.

Features

AT89S8253-24AU features: (1)Compatible with MCS-51 Products; (2)12K Bytes of In-System Programmable (ISP) Flash Program Memory: SPI Serial Interface for Program Downloading, Endurance: 10,000 Write/Erase Cycles; (3)2K Bytes EEPROM Data Memory: Endurance: 100,000 Write/Erase Cycles; (4)64-byte User Signature Array; (5)2.7V to 5.5V Operating Range; (6)Fully Static Operation: 0 Hz to 24 MHz; (7)Three-level Program Memory Lock.

Diagrams

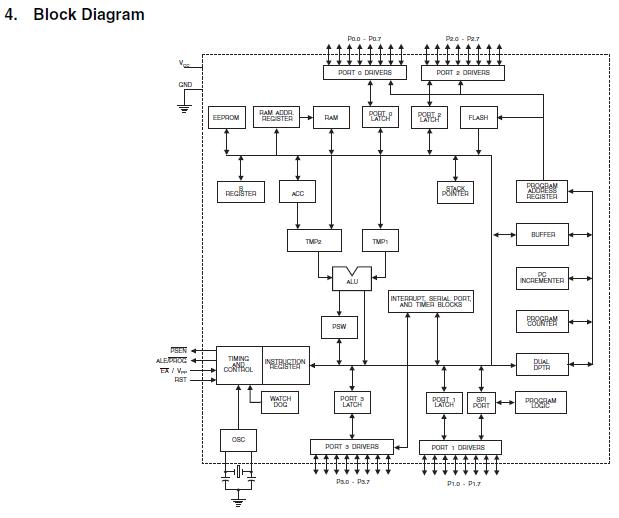

AT89S8253-24AU block diagram
