Product Summary
The AT65-0233 is a GaAs FET 4-bit digital attenuator with a 2.0 dB minimum step size and a 30 dB total attenuation range. This device is in a SOIC-16 plastic surface mount package. The AT65-0233 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required. Typical applications of the AT65-0233 include dynamic range setting in precision receiver circuits and other gain/leveling control circuits.
Parametrics
AT65-0233 absolute maxing ratings: (1)Max. Input Power 0.05 GHz: +27 dBm; 0.5 - 3.0 GHz: +34 dBm; (2)VCC: -0.5V ≤ VCC ≤ +7.0V; (3)VEE: -8.5V ≤ VEE ≤ +0.5V; (4)VCC - VEE: -0.5V ≤ VCC - VEE ≤ 14.5V; (5)Vin: -0.5V ≤ Vin ≤ VCC + 0.5V; (6)Operating Temperature: -40℃ to +85℃; (7)Storage Temperature: -65℃ to +125℃.
Features
AT65-0233 features: (1)Attenuation: 2.0 dB steps to 30 dB; (2)Low DC Power Consumption; (3)Integral TTL Driver; (4)50 Ohm Impedance; (5)Temperature Stability: ±0.18 dB from -55℃ to +85℃ Typ.; (6)SOIC-16 Package.

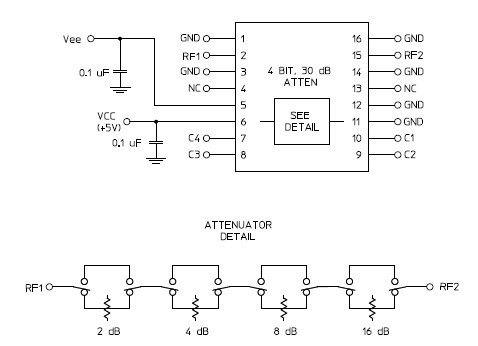

Diagrams

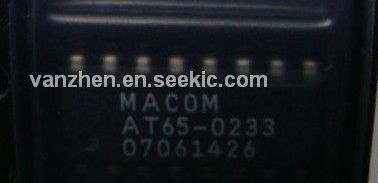

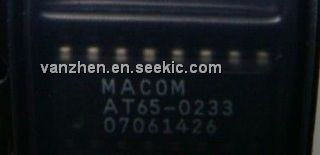

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT65-0233 |
Other |
|
Data Sheet |
Negotiable |
|
||||
