Product Summary

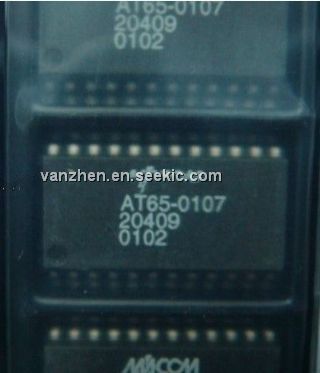

The AT65-0107TR is a Digital Attenuator. The AT65-0107TR is a GaAs FET 6-bit digital attenuator with a 0.5 dB minimum step size and a 31.5 dB total attenuation range. The AT65-0107TR is in a SOIC-24 wide body, plastic surface mount package. The AT65-0107TR is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.

Parametrics

AT65-0107TR absolute maximum ratings: (1)VCC: -0.5V ≤ VCC ≤ +7.0V; (2)VEE: -8.5V ≤ VEE ≤ +0.5V; (3)VCC - VEE: -0.5V ≤ VCC - VEE ≤ 14.5V; (4)Vin: -0.5V ≤ Vin ≤ VCC + 0.5V; (5)Operating Temperature: -40℃ to +85℃; (6)Storage Temperature: -65℃ to +125℃.

Features

AT65-0107TR features: (1) Attenuation: 0.5 dB Steps to 31.5 dB; (2)Low DC Power Consumption; (3)Plastic SOIC, Wide Body, SMT Package; (4)Integral TTL Driver; (5)50 ohm Impedance; (6)Test Boards are Available; (7)Tape and Reel Packaging Available; (8)SOW-24 Package.

Diagrams

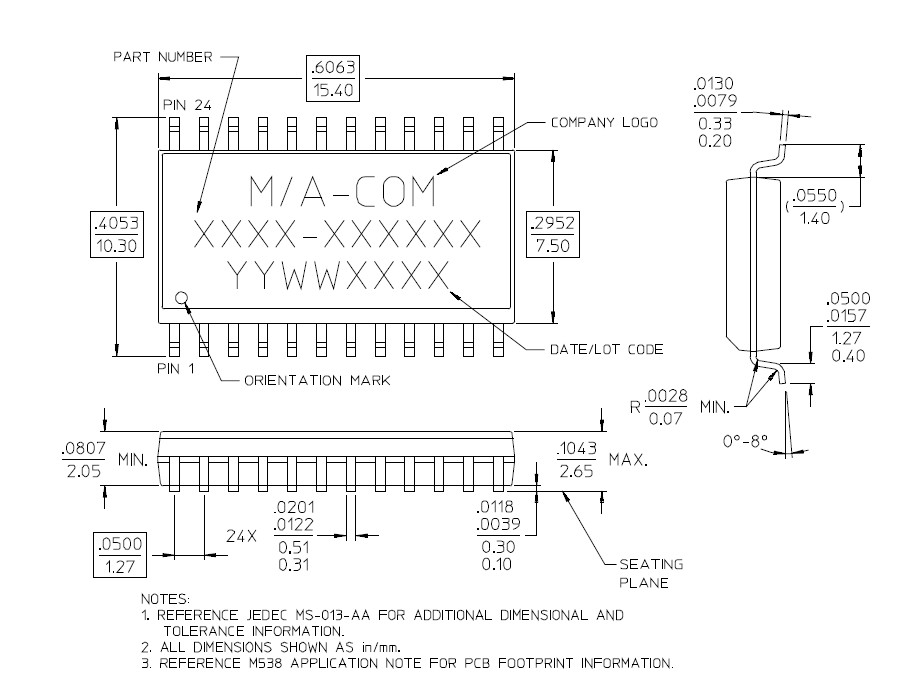

AT65-0107TR dimension
