Product Summary

The AT45DB642D is a 2.7-volt, dual-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB642D supports RapidS serial interface and Rapid8 8-bit interface. RapidS serial interface is SPI compatible for frequencies up to 66 MHz. In addition to the main memory, the AT45DB642D also contains two SRAM buffers of 1,024 (binary buffer size) bytes/1,056 bytes(standard DataFlash buffer size) each.

Parametrics

AT45DB642D absolute maximum ratings: (1)Temperature under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.

Features

AT45DB642D features: (1)Single 2.7V to 3.6V Supply; (2)Dual-interface Architecture: RapidS Serial Interface: 66 MHz Maximum Clock Frequency SPI Compatible Modes 0 and 3, Rapid8 8-bit Interface: 50 MHz Maximum Clock Frequency User Configurable Page Size: 1024 Bytes per Page, 1056 Bytes per Page, Page Size Can Be Factory Pre-configured for 1024 Bytes; (3)Page Program Operation: Intelligent Programming Operation, 8192 Pages (1024/1056 Bytes/Page) Main Memory; (4)Flexible Erase Options: Page Erase (1 Kbyte), Block Erase (8 Kbytes), Sector Erase (256 Kbytes), Chip Erase (64 Mbits); (5)Two SRAM Data Buffers (1024/1056 Bytes): Allows Receiving of Data while Reprogramming the Flash Array; (6)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (7)10 mA Active Read Current Typical – Serial Interface; (8)10 mA Active Read Current Typical – 8-bit Interface; (9)25 μA Standby Current Typical ; (10)15 μA Deep Power Down Typical; (11)JEDEC Standard Manufacturer and Device ID Read; (12)100,000 Program/Erase Cycles Per Page Minimum; (13)Data Retention – 20 Years; (14)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

Diagrams

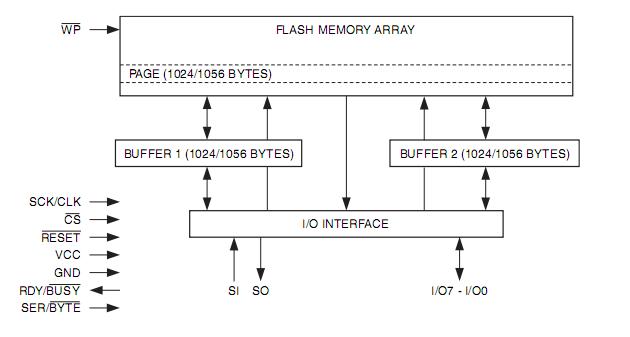

AT45DB642D pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

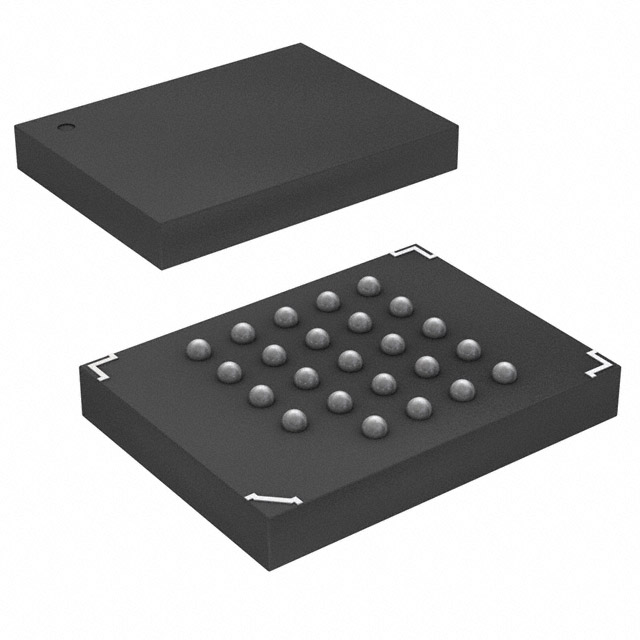

AT45DB642D-CNU
AT45DB642D-CNU

Atmel

Flash 64M 8 I/O Pins Ser Rapid8 1056B 2.7V

Data Sheet

0-1: $3.37
1-10: $3.13
10-25: $2.81
25-100: $2.41
AT45DB642D-CU
AT45DB642D-CU

Atmel

Flash Serial DataFlash 64Mbit 2.7V

Data Sheet

0-1: $3.74
1-10: $3.47
10-25: $3.13
25-100: $2.68
AT45DB642D-TU
AT45DB642D-TU

Atmel

Flash 64M 28 I/O Pin Ser Rapid8 1056B 2.7V

Data Sheet

0-1: $3.56
1-10: $3.29
10-25: $2.97
25-100: $2.54
