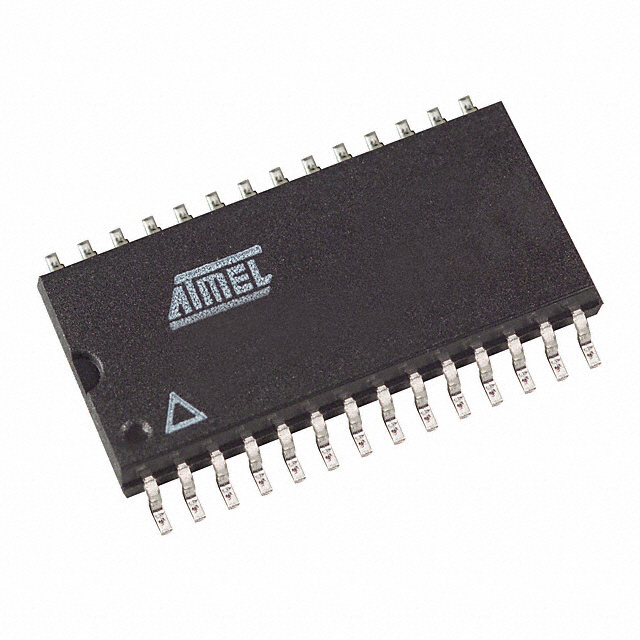

AT45DB041B-RC

AT45DB041B-RC, interface Flash memory, -0.6V, 20 MHz, 2 μA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.40 / Piece
1000 ~ 10000 :	0.30 / Piece
10000 ~ 100000 :	0.20 / Piece

PartNumber:: AT45DB041B-RC

Brand:: ATMEL Corporation - ATMEL | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-03

From Other Seller

Part Number:AT45DB041B-RC
US $0.20 - 0.40
Quantity:

piece

Product Summary

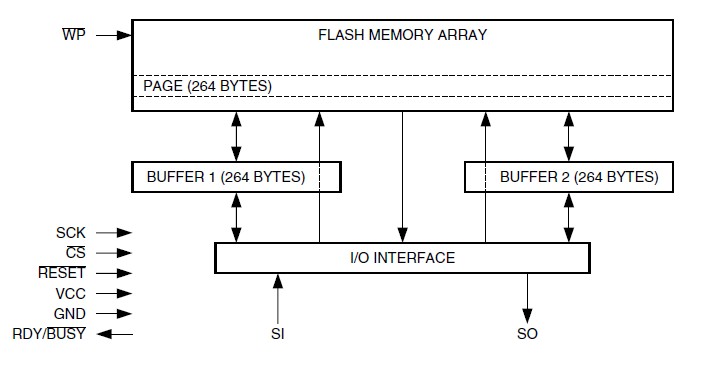

The AT45DB041B-RC is a SPI compatible serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 4,325,376 bits of memory are organized as 2048 pages of 264 bytes each. In addition to the main memory, the AT45DB041B-RC also contains two SRAM data buffers of 264 bytes each. The buffers of the AT45DB041B-RC allow receiving of data while a page in the main memory is being reprogrammed, as well as reading or writing a continuous data stream.

Parametrics

AT45DB041B-RC absolute maximum ratings: (1)Temperature under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB041B-RC features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation: Single Cycle Reprogram (Erase and Program); 2048 Pages (264 Bytes/Page) Main Memory; (5)Supports Page and Block Erase Operations; (6)Two 264-byte SRAM Data Buffers – Allows Receiving of Data while Reprogramming the Flash Memory Array; (7)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (8)Low Power Dissipation: 4 mA Active Read Current Typical; 2 μA CMOS Standby Current Typical; (9)Hardware Data Protection Feature; (10)5.0V-tolerant Inputs: SI, SCK, CS, RESET, and WP Pins; (11)Commercial and Industrial Temperature Ranges; (12)Green (Pb/Halide-free/RoHS Compliant) Package Options.
