Product Summary

The AT28C6415JC is a low-power, high-performance 8,192 words by 8 bit nonvolatile Electrically Erasable and Programmable Read Only Memory with popular, easy to use features. The AT28C6415JC is manufactured with Atmel’s reliable nonvolatile technology.

Parametrics

AT28C6415JC absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C6415JC features: (1)Fast Read Access Time - 120 ns; (2)Fast Byte Write - 200 μs or 1 ms; (3)Self-Timed Byte Write Cycle; (4)Direct Microprocessor Control; (5)Low Power; (6)High Reliability; (7)5V ± 10% Supply; (8)CMOS and TTL Compatible Inputs and Outputs; (9)JEDEC Approved Byte-Wide Pinout; (10)Commercial and Industrial Temperature Ranges.

Diagrams

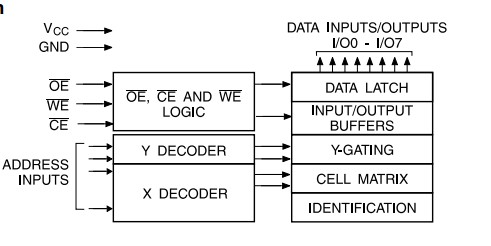

AT28C6415JC block diagram
