Product Summary

The AT25FS010N-SH27-T is a reprogrammable Flash memory organized as 131,072 words of 8 bits each. The AT25FS010N-SH27-T is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25FS010N-SH27-T is available in a space-saving 8-lead JEDEC SOIC and 8-lead Ultra Thin SAP packages.

Parametrics

AT25FS010N-SH27-T absolute maximum ratings: (1)Operating Temperature: –40°C to +85°C; (2)Storage Temperature : –65°C to +150°C; (3)Voltage on Any Pin with Respect to Ground : –1.0V to +5.0V; (4)Maximum Operating Voltage : 4.2V; (5)DC Output Current: 5.0 mA.

Features

AT25FS010N-SH27-T features: (1)Serial Peripheral Interface (SPI)Compatible; (2)50 MHz Clock Rate; (3)Byte Mode and Page Mode Program (1 to 256 Bytes)Operations; (4)Sector/Block/Page Architecture; (5)Self-timed Sector, Block and Chip Erase; (6)Product Identification Mode with JEDEC Standard; (7)Hardware and Software Write Protection; (8)Upper 1/32, 1/16, 1/8, 1/4, 1/2 or Entire Array; (9)Flexible Op Codes for Maximum Compatibility; (10)Self-timed Program Cycle; (11)Single Cycle Reprogramming (Erase and Program)for Status Register; (12)8-lead JEDEC 150mil SOIC and 8-lead Ultra Thin Small Array Package (SAP); (13)Die Sales: Waffer Form, Tape and Reel, and Bumped Waffers.

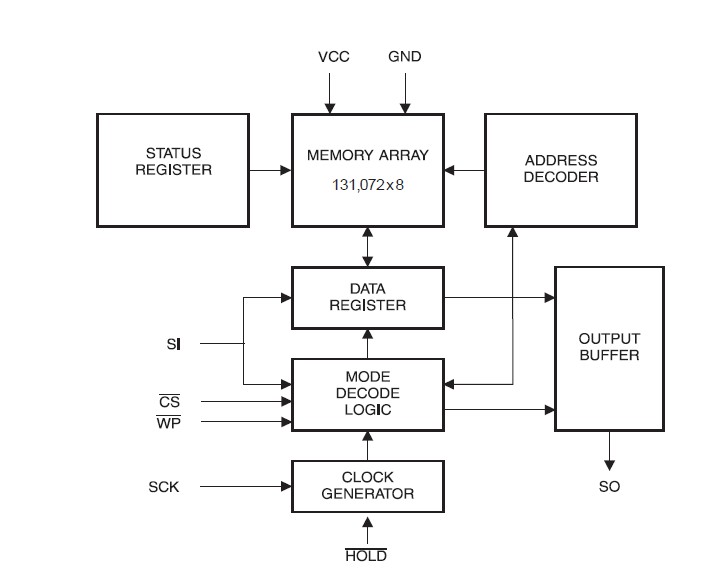

Diagrams

AT25FS010N-SH27-T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT25FS010N-SH27-T
AT25FS010N-SH27-T

Atmel

Flash 8 2.7V - 8-PH/ NIPDAU 2.7

Data Sheet

Negotiable
