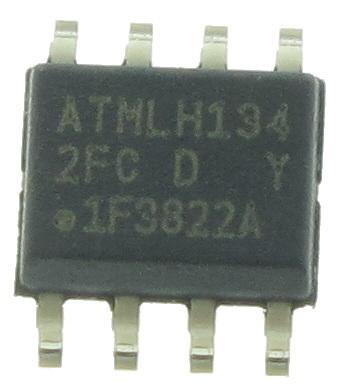

AT24C512C-SSHD-T

AT24C512C-SSHD-T, Two-wire Serial EEPROM, 7.0V, 5.0mA, 5 ms, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.20 / Piece
1000 ~ 10000 :	0.15 / Piece
10000 ~ 100000 :	0.10 / Piece

PartNumber:: AT24C512C-SSHD-T

Brand:: ATMEL Corporation - ATMEL | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-01

From Other Seller

Part Number:AT24C512C-SSHD-T
US $0.10 - 0.20
AT24C512C-SSHD-T

US $0.35 - 0.60 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT24C512C-SSHD-T is a serial EEPROM, and provides 524,288 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 65,536 words of eight bits each. The cascadable feature of the AT24C512C-SSHD-T allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C512C-SSHD-T is available in space-saving 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-pad UDFN, and 8-ball VFBGA packages. In addition, the entire family is available in 1.7V (1.7V to 3.6V) and 2.5V (2.5V to 5.5V) versions.

Parametrics

AT24C512C-SSHD-T absolute maximum ratings (1)Operating Temperature: –55°C to +125°C; (2)Storage Temperature: –65°C to +150°C; (3)Voltage on any pin with respect to ground: –1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0mA.

Features

AT24C512C-SSHD-T features: (1)Low-voltage and standard-voltage operation; (2)Internally organized as 65,536 x 8; (3)2-wire serial interface; (4)Schmitt Triggers, filtered inputs for noise suppression; (5)Bidirectional data transfer protocol; (6)400kHz (1.7V) and 1MHz (2.5V, 5.5V) compatibility; (7)Write Protect pin for hardware data protection; (8)128-byte page write mode; (9)Random and sequential read modes; (10)Self-timed write cycle (5ms max); (11)High reliability; (12)Green package options (Pb/Halide-free/RoHS Compliant); (13)Die sale options: wafer form and tape and reel available.
