Product Summary
The AT24C1024 provides 1,048,576 bits of serial electrically erasable and programmable
read only memory (EEPROM) organized as 131,072 words of 8 bits each. The
device’s cascadable feature allows up to 2 devices to share a common 2-wire bus. The
device is optimized for use in many industrial and commercial applications where lowpower
and low-voltage operation are essential. The devices are available in spacesaving
8-lead PDIP, 8-lead EIAJ SOIC, 8-lead Leadless Array (LAP) and 8-ball dBGA
packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V) versions.
Features
? Low-voltage Operation
– 2.7 (VCC = 2.7V to 5.5V)
? Internally Organized 131,072 x 8
? 2-wire Serial Interface
? Schmitt Triggers, Filtered Inputs for Noise Suppression
? Bi-directional Data Transfer Protocol
? 400 kHz (2.7V) and 1 MHz (5V) Clock Rate
? Write Protect Pin for Hardware and Software Data Protection
? 256-byte Page Write Mode (Partial Page Writes Allowed)
? Random and Sequential Read Modes
? Self-timed Write Cycle (5 ms Typical)
? High Reliability
– Endurance: 100,000 Write Cycles/Page
– Data Retention: 40 Years
? 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead LAP and 8-ball dBGATM Packages
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

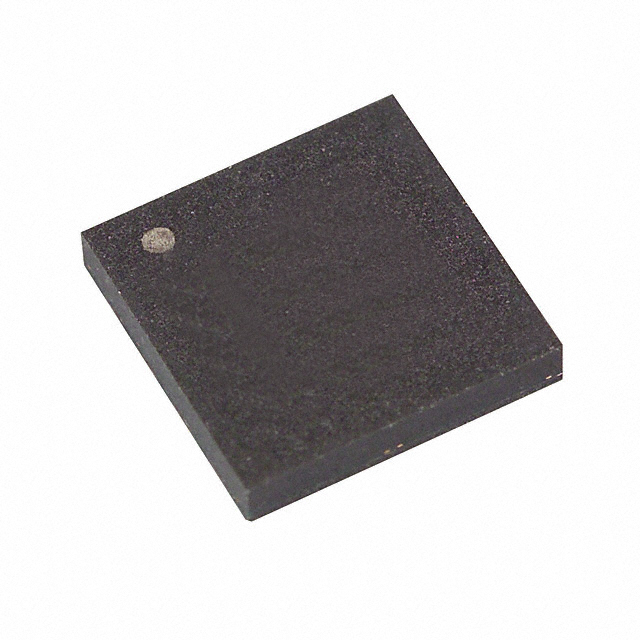

 AT24C1024C1-10CI-2.7 |
|
IC EEPROM 1MBIT 1MHZ 8LAP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
AT24C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AT24C01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
AT24C01-10PC |
Atmel |
IC SEEPROM 1K 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT24C01-10PC-1.8 |
Atmel |
IC SEEPROM 1K 1.8V 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT24C01-10PC-2.5 |
Atmel |
IC SEEPROM 1K 2.5V 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT24C01-10PC-2.7 |
Atmel |
IC SEEPROM 1K 2.7V 8DIP |
Data Sheet |
Negotiable |
|
||||
