Product Summary
The AT24C1024BW-SH-T Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512/1024 words of eight bits each. The AT24C1024BW-SH-T is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C1024BW-SH-T is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
Parametrics
AT24C1024BW-SH-T absolute maximum ratings: (1)Operating Temperature : –55°C to +125°C; (2)Storage Temperature : –65°C to +150°C; (3)Voltage on any pin with respect to ground : –1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0mA.
Features
AT24C1024BW-SH-T features: (1)Internally Organized 65,536 x 8; (2)Two-wire Serial Interface; (3)Schmitt Triggers, Filtered Inputs for Noise Suppression; (4)Bidirectional Data Transfer Protocol; (5)1 MHz (2.5V, 5.5V), 400 kHz (1.8V) Compatibility; (6)Write Protect Pin for Hardware and Software Data Protection; (7)128-byte Page Write Mode (Partial Page Writes Allowed); (8)Self-timed Write Cycle (5 ms Max); (9)High Reliability.

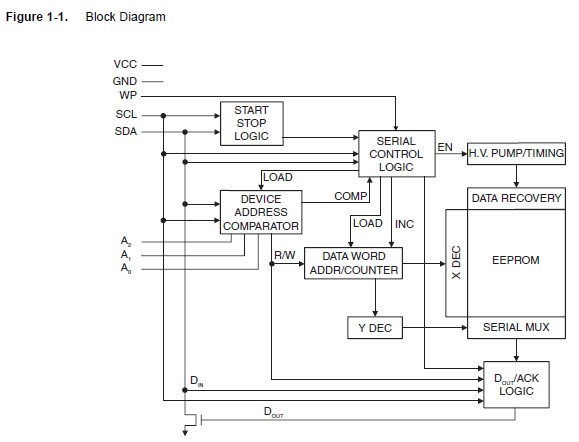

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT24C1024BW-SH-T |
Atmel |
EEPROM 1.8V |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
AT24C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
AT24C01 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
AT24C01-10PC |
Atmel |
IC SEEPROM 1K 8DIP |
Data Sheet |
Negotiable |
|
||||||
|
AT24C01-10PC-1.8 |
Atmel |
IC SEEPROM 1K 1.8V 8DIP |
Data Sheet |
Negotiable |
|
||||||
|
AT24C01-10PC-2.5 |
Atmel |
IC SEEPROM 1K 2.5V 8DIP |
Data Sheet |
Negotiable |
|
||||||
|
AT24C01-10PC-2.7 |
Atmel |
IC SEEPROM 1K 2.7V 8DIP |
Data Sheet |
Negotiable |
|
||||||
