Product Summary

The Atmel AT24C02C-XHM-T is a serial electrically erasable and programmable read-only memory (EEPROM) organized as 256-words of 8-bits each. The AT24C02C-XHM-T is optimized for use in many industrial and commercial applications where low power and low-voltage operation are essential. The AT24C02C-XHM-T is available in spacesaving 8-lead TSSOP and is accessed via a two-wire serial interface.

Parametrics

AT24C02C-XHM-T absolute maximum ratings: (1)Operating Temperature: –55℃ to +125℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: –1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24C02C-XHM-T features: (1)Low-voltage and Standard-voltage Operation; (2)Internally Organized 256 x 8 (2K); (3)Two-wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bidirectional Data Transfer Protocol; (6)1MHz (5V), 400kHz (1.7V, 2.5V, 2.7V) Compatibility; (7)Write Protect Pin for Hardware Data Protection; (8)8-byte Page (2K) Write Modes; (9)Partial Page Writes Allowed; (10)Self-timed Write Cycle (5ms max); (11)High-reliability; (12)Green (Pb/Halide-free/RoHS Compliant) Package Options; (13)Die Sales: Wafer Form and Tape and Reel.

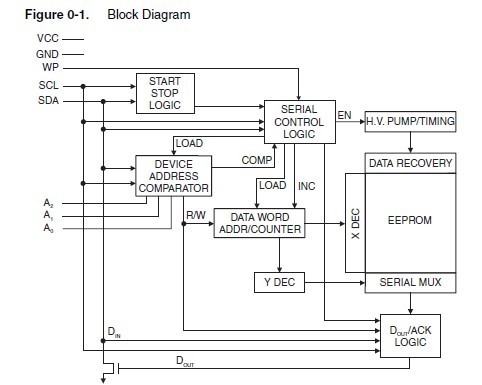

Diagrams

AT24C02C-XHM-T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT24C02C-XHM-T
AT24C02C-XHM-T
Atmel
EEPROM PB/HALO free NiPdAu, 1.7V
Data Sheet
0-1: $0.22
1-25: $0.22
25-100: $0.19
100-1000: $0.14
1000-5000: $0.13
