Product Summary

The AT24C02C-PUM is a Programmable Read-only Memory, and it provides 2048-bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256-words of 8-bits each. The device is optimized for use in many industrial and commercial applications where lowpower and low-voltage operation are essential. The AT24C02C-PUM is available in spacesaving 8-lead PDIP, 8-lead TSSOP, 8-lead JEDEC SOIC, 8-lead UDFN, 5-lead SOT23 and 8-ball VFBGA packages and is accessed via a two-wire serial interface.

Parametrics

AT24C02C-PUM absolute maximum ratings: (1)Operating Temperature: –55℃ to +125℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: –1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24C02C-PUM features: (1)Internally Organized 256 x 8 (2K); (2)Two-wire Serial Interface; (3)Schmitt Trigger, Filtered Inputs for Noise Suppression; (4)Bidirectional Data Transfer Protocol; (5)1MHz (5V), 400kHz (1.7V, 2.5V, 2.7V) Compatibility; (6)Write Protect Pin for Hardware Data Protection; (7)8-byte Page (2K) Write Modes; (8)Partial Page Writes Allowed; (9)Self-timed Write Cycle (5ms max); (10)Green (Pb/Halide-free/RoHS Compliant) Package Options; (11)Die Sales: Wafer Form and Tape and Reel.

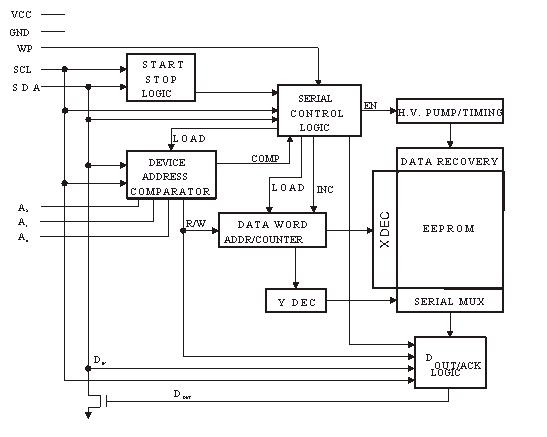

Diagrams

AT24C02C-PUM pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT24C02C-PUM
AT24C02C-PUM

Atmel

EEPROM 2K (256x8) 2-WIRE 1.8V, MATT-TIN

Data Sheet

0-1: $0.26
1-10: $0.23
10-25: $0.20
25-100: $0.17
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT24C
AT24C

Other


Data Sheet

Negotiable
AT24C01
AT24C01

Other


Data Sheet

Negotiable
AT24C01-10PC
AT24C01-10PC

Atmel

IC SEEPROM 1K 8DIP

Data Sheet

Negotiable
AT24C01-10PC-1.8
AT24C01-10PC-1.8

Atmel

IC SEEPROM 1K 1.8V 8DIP

Data Sheet

Negotiable
AT24C01-10PC-2.5
AT24C01-10PC-2.5

Atmel

IC SEEPROM 1K 2.5V 8DIP

Data Sheet

Negotiable
AT24C01-10PC-2.7
AT24C01-10PC-2.7

Atmel

IC SEEPROM 1K 2.7V 8DIP

Data Sheet

Negotiable
