Product Summary

The AS179-92LF is an IC FET SPDT switch in a low-cost miniature SC-70 6-lead plastic package. The AS179-92LF features low insertion loss and positive voltage operation with very low DC power consumption. This general-purpose switch can be used in a variety of telecommunications applications. Applications include General-purpose medium-power switches in telecommunication applications and T/R switches in 802.11b, g WLAN Bluetooth TM systems.

Parametrics

AS179-92LF absolute maximum ratings: (1)Control voltage: -0.2 V, +8 V; (2)Operating temperature: -40℃ to +85℃; (3)Storage temperature: -65℃ to +150℃.

Features

AS179-92LF features: (1)P1 dB 30 dBm typical @ 3 V; (2)IP3 43 dBm typical @ 3 V; (3)Low insertion loss (0.3 dB @ 0.9 GHz); (4)Low DC power consumption; (5)Ultraminiature SC-70 6-lead package; (6)PHEMT process; (7)Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260℃ per JEDEC J-STD-020.

Diagrams

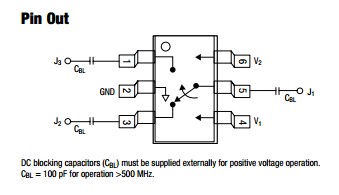

AS179-92LF Pin Out

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AS179-92LF
AS179-92LF

Skyworks Solutions, Inc.

RF Switch ICs 802.11b/g IL .3dB IP3=+43dBm typ.

Data Sheet

0-1: $0.31
1-50: $0.28
50-100: $0.24
100-500: $0.21
AS179-92LF-EVB
AS179-92LF-EVB


EVAL BOARD FOR AS179-92 SPDT SW

Data Sheet

0-1: $75.00
