Product Summary

The AS1108WL is a compact display driver for 7-segment numeric displays of up to 4 digits. The AS1108WL can be programmed via SPI, QSPI, and Microwire as well as a conventional 4-wire serial interface. The AS1108WL includes an integrated BCD code-B/HEX decoder, multiplex scan circuitry, segment and display drivers, and a 32-bit memory. Internal memory stores the LED settings, eliminating the need for continuous device reprogramming. The AS1108WL is ideal for bar-graph displays, instrumentpanel meters, LED matrix displays, dot matrix displays, set-top boxes, white goods, professional audio equipment, medical equipment, industrial controllers and panel meters.

Parametrics

AS1108WL absolute maximum ratings: (1)VDDL: -0.3 to 7 V; (2)DIN, CLK, LOAD/CSN: -0.3 to 7 V; (3)All Other Pins -0.3 to 7 or VDD +0.3V; (4)Current: 500mA; (5)SEG A:SEG G, SEG DP: 100 mA; (6)Continuous Power Dissipation (TAMB = +85℃) Narrow Plastic DIP: 1066mW; (7)Operating Temperature Ranges (TMIN toTMAX): 0 to +70℃.

Features

AS1108WL features: (1)10MHz SPI-, QSPI-, Microwire-Compatible Serial I/O; (2)Individual LED Segment Control; (3)Segment Blinking Control (can be synchronized across multiple drivers); (4)Hexadecimal- or BCD-Code/No-Decode Digit Selection; (5)3μA Low-Power Shutdown Current (typ; data retained); (6)Extremely Low Operating Current 0.5mA in Open-Loop; (7)Digital and Analog Brightness Control; (8)Display Blanked on Power-Up; (9)Drive Common-Cathode LED Displays; (10)Supply Voltage Range: +2.7 to +5.5V; (11)Software Reset; (12)Optional External Clock; (13)Packages: 20-pin DIP; 20-pin SOIC.

Diagrams

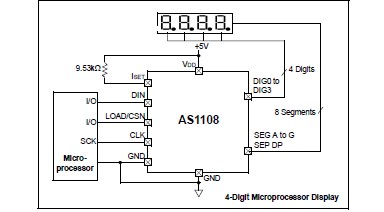

AS1108WL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AS1108WL
AS1108WL

IC LED 4-DIGIT DRIVER 20-SOIC
Data Sheet
0-1: $2.69
1-25: $2.16
25-100: $1.97
100-250: $1.78
250-500: $1.59
500-1000: $1.34
1000-2500: $1.28
