Product Summary

The AME1117ACCT is a 1A low-dropout positive voltage regulator. The AME1117ACCT is available in fixed and adjustable output voltage versions. Overcurrent and thermal protection are integrated onto the chip. Output current will limit as while it reaches the pre-set current or temperature limit. The dropout voltage is specified at 1.4V Maximum at full rated output current. The AME1117ACCT provides excellent regulation over line, load and temperature variations. Applications are (1)High Efficiency Linear Regulators; (2)5V to 3.3V Voltage Converter; (3)Battery Charger; (4)Post Regulators for Switching Supplies.

Parametrics

AME1117ACCT absolute maximum ratings: (1)Operating Junction Temperature Range: 0 to 125°C; (2)Storage Temperature Range: -65 to 150°C; (3)Lead Temperature (10 sec): 260°C; (4)Input Voltage: 7V; (5)Current limit IS VIN = 4.75~7V, Over Temp: 1.0A; (6)Quiescent Current IQ VIN = 5V, IO = 0A~1A, Over Temp: - 6 to 13 mA.

Features

AME1117ACCT features: (1)Low dropout voltage : 1.2V at 1A; (2)Adjustable or fixed voltages 2.5V, 3.3V, 5.0V; (3)Typicaline regulation : 0.2%; (4)Typicaload regulation : 0.15%; (5)Adjust pin current less than 90mA; (6)Overcurrent protection; (7)Thermaprotection; (8)Available in TO-220, TO-252, SOT-223.

Diagrams

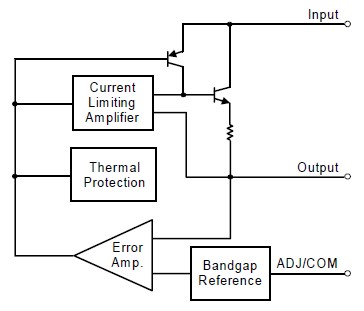

AME1117ACCT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AME1117ACCT
AME1117ACCT
AME
Low Dropout (LDO) Regulators Pos. Adj. / 1A LDO
Data Sheet
0-1: $0.45
1-25: $0.36
25-50: $0.32
50-100: $0.16
