Product Summary
The AM27C64-90DI is a 64-Kbit, ultraviolet erasable programmable read-only memory. The AM27C64-90DI is organized as 8K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. Products are available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages.
Parametrics
AM27C64-90DI absolute maximum ratings: (1)Storage Temperature, OTP Products: -65℃ to +125℃; All Other Products: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Voltage with Respect to VSS, All pins except A9, VPP, VCC: -0.6 V to VCC +0.6 V; A9 and VPP: -0.6 V to 13.5 V; VCC: -0.6 V to 7.0 V.
Features
AM27C64-90DI features: (1)Fast access time, Speed options as fast as 45 ns; (2)Low power consumption, 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite. programming, Typical programming time of 1 second; (7)Latch-up protected to 100 mA from -1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing, Both CMOS and TTL input/output compatibility; Two line control functions; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.

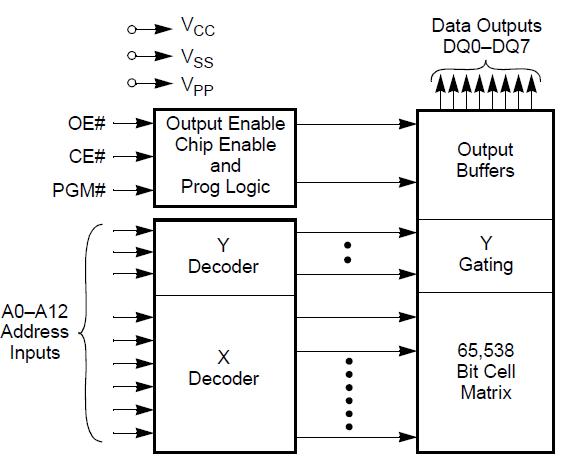

Diagrams
