Product Summary
The AH31-G is a high dynamic range amplifier in a low-cost surface-mount package. The combination of low noise figure, high gain, and high output IP3 is ideal as an IF amplifier for receiver and transmitter applications. The applications of the AH31-G are High linearity and low-noise amplifier following a mixer, High performance amplifier in IF path of TX/RX systems.
Parametrics
AH31-G absolute maximum ratings: (1)Operating Case Temperature: -40 to +85 °C; (2)Storage Temperature: -55 to +150 °C; (3)DC Voltage: +6 V; (4)RF Input Power (continuous): 4 dB above Input P1dB; (5)Junction Temperature: +220° C.
Features
AH31-G features: (1)50 to 1000MHz; (2)19dB gain; (3)+22dbm pldb; (4)+42dbm oip3; (5)1.8db noise figure; (6)single voltage supply +5V.

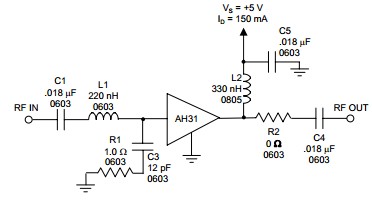

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AH31-G |
TriQuint Semiconductor |
RF Amplifier 50-1000MHz 19dB Gain |
Data Sheet |
|
|
||||||||||||||
