ADV7391BCPZ

ADV7391BCPZ, Low Power, Chip Scale 10-Bit SD/HD Video Encoder, QFN, -0.3 V to +3.9 V, 37mA, Analog Devices Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: ADV7391BCPZ

Brand:: Analog Devices Inc - ADI | Pack: QFN | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:ADV7391BCPZ
US $3.00 - 5.00
Quantity:

piece

Product Summary

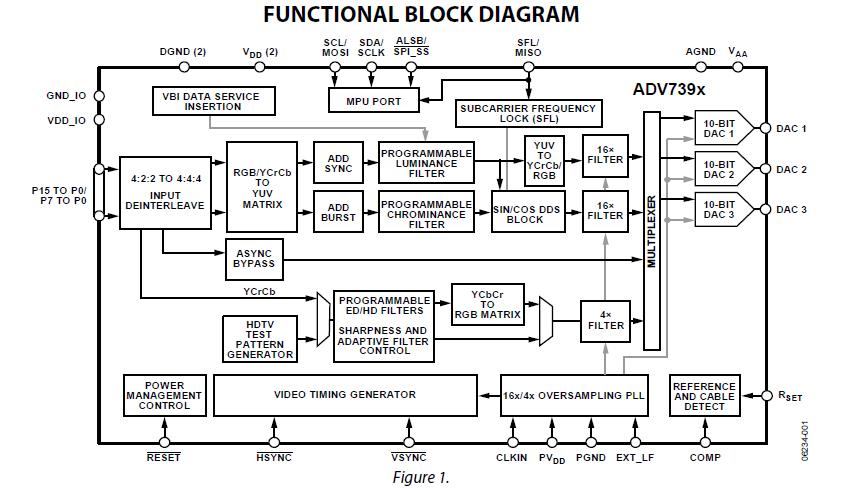

The ADV7391BCPZ is a high speed, digital-to-analog video encoder on single monolithic chips. Three 2.7 V/3.3 V 10-bit video DACs provide support for composite (CVBS), S-Video (YC), or component (YPrPb/RGB) analog outputs in either standard-definition (SD) or high-definition (HD) video formats. The applications of the ADV7391BCPZ include Mobile handsets, Digital still cameras, Portable media and DVD players, Portable game consoles, Digital camcorders, Set-top box (STB), Automotive infotainment (ADV7393 only).

Parametrics

ADV7391BCPZ absolute maximum ratings: (1)VAA to AGND: -0.3 V to +3.9 V; (2)VDD to DGND: -0.3 V to +2.3 V; (3)PVDD to PGND: -0.3 V to +2.3 V; (4)VDD_IO to GND_IO: -0.3 V to +3.9 V; (5)VAA to VDD: -0.3 V to +2.2 V; (6)VDD to PVDD: -0.3 V to +0.3 V; (7)VDD_IO to VDD: -0.3 V to +2.2 V; (8)AGND to DGND: -0.3 V to +0.3 V; (9)AGND to PGND: -0.3 V to +0.3 V; (10)AGND to GND_IO: -0.3 V to +0.3 V; (11)DGND to PGND: -0.3 V to +0.3 V; (12)DGND to GND_IO: -0.3 V to +0.3 V; (13)PGND to GND_IO: -0.3 V to +0.3 V; (14)Digital Input Voltage to GND_IO: -0.3 V to VDD_IO + 0.3 V; (15)Analog Outputs to AGND: -0.3 V to VAA; (16)Storage Temperature Range (tS): -60℃ to +100℃; (17)Junction Temperature (tJ): 150℃; (18)Lead Temperature (Soldering, 10 sec): 260℃.

Features

ADV7391BCPZ features: (1)3 high quality, 10-bit video DACs, 16× (216 MHz) DAC oversampling for SD; 8× (216 MHz) DAC oversampling for ED; 4× (297 MHz) DAC oversampling for HD; 37 mA maximum DAC output current; (2)Multiformat video input support, 4:2:2 YCrCb (SD, ED, and HD); 4:4:4 RGB (SD); (3)Multiformat video output support, Composite (CVBS) and S-Video (Y/C); Component YPrPb (SD, ED, and HD); Component RGB (SD, ED, and HD); (4)Lead frame chip scale package (LFCSP) options, 32-lead, 5 mm × 5 mm LFCSP; 40-lead, 6 mm × 6 mm LFCSP; (5)Advanced power management, Patented content-dependent low power DAC operation; Automatic cable detection and DAC power-down; Individual DAC on/off control; Sleep mode with minimal power consumption; (6)74.25 MHz 8-/10-/16-bit high definition input support, Compliant with SMPTE 274M (1080i), 296M (720p), and 240M (1035i); (7)EIA/CEA-861B compliance support; (8)NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support.
