Product Summary

The ADUM1301BRWZ-RL is a 3-channel digital isolator based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic transformer technology, the isolation compo-nent provides outstanding performance characteristics superior to alternatives such as optocoupler device. By avoiding the use of LEDs and photodiodes, iCoupler device removes the design difficulties commonly associated with optocoupler. The ADUM1301BRWZ-RL concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The applications of the ADUM1301BRWZ-RL include General-purpose multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver, Industrial field bus isolation.

Parametrics

ADUM1301BRWZ-RL absolute maximum ratings: (1)Storage Temperature, TST: -65 to +150℃; (2)Ambient Operating Temperature, TA: -40 to +105℃; (3)Supply Voltages1, VDD1, VDD2: -0.5 to +7.0V; (4)Input Voltage, VIA, VIB, VIC, VE1, VE2: -0.5 to VDDI + 0.5V; (5)Output Voltage, VOA, VOB, VOC: -0.5 to VDDO + 0.5V; (6)Average Output Current, Per Pin, Side, IO1: -23 to +23mA; Side, IO2: -30 to +30mA; (7)Common-Mode Transients: -100 to +100 kV/μs.

Features

ADUM1301BRWZ-RL features: (1)Low power operation; (2)Bidirectional communication; (3)3 V/5 V level translation; (4)High temperature operation: 105℃; (5)High data rate: dc to 90 Mbps (NRZ); (6)Precise timing characteristics: 2 ns max pulse-width distortion; 2 ns max channel-to-channel matching; (7)High common-mode transient immunity: >25 kV/μs; (8)Output enable function; (9)Wide body 16-lead SOIC package, Pb-free models available; (10)Safety and regulatory approvals.

Diagrams

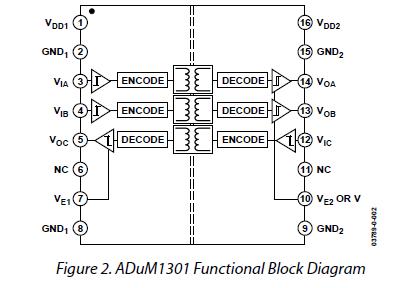

ADUM1301BRWZ-RL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADUM1301BRWZ-RL
ADUM1301BRWZ-RL

IC DGITAL ISOLATOR 3CH 16SOIC TR
Data Sheet
0-1000: $1.82
