ADS7828E/2K5

ADS7828E/2K5, 8-Channel Sampling analog-to-digital converter, TSSOP, -0.3V to +6V, 50kHz, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: ADS7828E/2K5

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:ADS7828E/2K5
US $3.00 - 5.00
Quantity:

piece

Product Summary

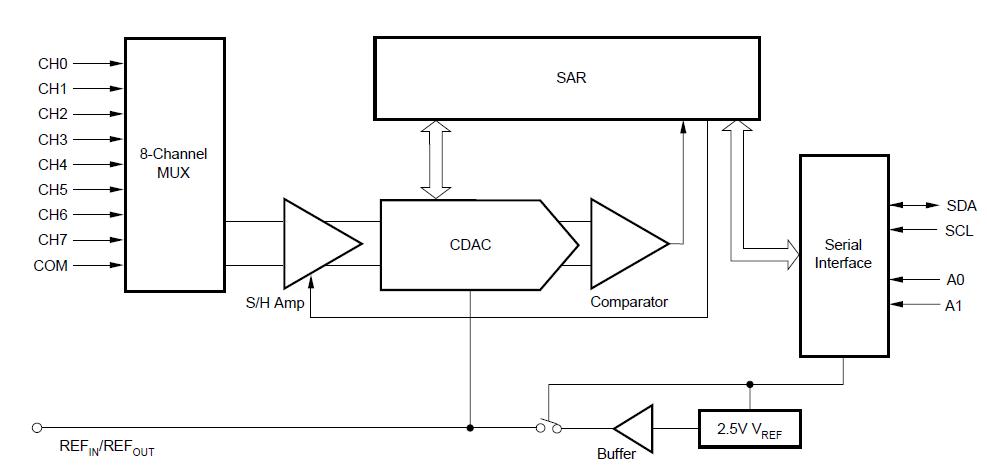

The ADS7828E/2K5 is a single-supply, low-power, 12-bit data acquisition device that features a serial I2C interface and an 8-channel multiplexer. The Analog-to-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I2C serial, 2-wire interface and micropower consumption makes the ADS7828E/2K5 ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The applications of the ADS7828E/2K5 include voltage-supply monitoring, isolated data acquisition, transducer interface, battery-operated systems, remote data acquisition.

Parametrics

ADS7828E/2K5 absolute maximum ratings: (1)+VDD to GND: -0.3V to +6V; (2)Digital Input Voltage to GND: -0.3V to +VDD + 0.3V; (3)Operating Temperature Range: -40℃ to +105℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Junction Temperature (TJ max): +150℃.

Features

ADS7828E/2K5 features: (1)8-channel multiplexer; (2)50kHz sampling rate; (3)No missing codes; (4)2.7V to 5V Operation; (5)Internal 2.5V reference; (6)I2C Interface supports: Standard, Fast, and High-Speed Modes; (7)TSSOP-16 package.
