Product Summary
The ADM706SARZ-RELL is a microprocessor supervisory circuit which suitable for monitoring either 3 V or 3.3 V power supplies. The ADM706SARZ-RELL provides power-supply monitoring circuitry that generate a reset output during power-up, power-down, and brownout conditions. The applications of the ADM706SARZ-RELL include Microprocessor systems, Computers, Controllers, Intelligent instruments, Critical microprocessor monitoring, Battery-operated systems, Portable instruments.
Parametrics
ADM706SARZ-RELL absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)All Other Inputs: -0.3 V to VCC + 0.3 V; (3)Input Current, VCC: 20 mA; GND: 20 mA; (4)Digital Output Current: 20 mA; (5)Power Dissipation, N-8 (PDIP): 727 mW; (6)θJA Thermal Impedance: 135℃/W; (7)Power Dissipation, R-8 (SOIC): 470 mW; (8)θJA Thermal Impedance: 110℃/W; (9)Operating Temperature Range, Industrial (Version A): -40℃ to +85℃; (10)Lead Temperature (Soldering, 10 sec): 300℃; (11)Vapor Phase (60 sec): 215℃; (12)Infrared (15 sec): 220℃; (13)Storage Temperature Range: -65℃ to +150℃.
Features
ADM706SARZ-RELL features: (1)Precision supply voltage monitor, 2.63 V (ADM706P, ADM706R, ADM708R); 2.93 V (ADM706S, ADM708S); 3.08 V (ADM706T, ADM708T); (2)100 μA quiescent current; (3)200 ms reset pulse width; (4)Debounced manual reset input (MR); (5)Independent watchdog timer 1.6 second timeout (ADM706x); (6)Reset output, Active high (ADM706P); Active low (ADM706R, ADM706S, ADM706T); Both active high and active low (ADM708R, ADM708S, ADM708T); (7)Voltage monitor for power-fail or low battery warning; (8)Guaranteed RESET valid with VCC = 1 V; (9)Superior upgrade for MAX706P/R/S/T, MAX708R/S/T.

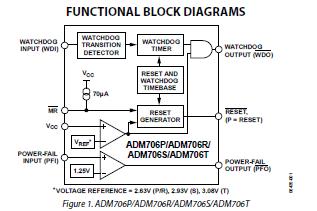

Diagrams
