ADM101EARMZ-REEL7

Product Summary

The ADM101EARMZ-REEL7 is a RS-232 Transceiver. The ADM101EARMZ-REEL7 is a single channel RS-232 driver and receiver in the Analog Devices Craft Port series, designed to operate from a single, 5 V supply. A highly efficient charge-pump voltage inverter generates an on-chip –5 V supply, which eliminates the need for a negative power supply for the driver and permits RS-232 compatible output levels to be developed using charge pump capacitors as small as 0.1 μF. A shutdown input disables the charge pump and puts the device into a low power shutdown mode, in which the current consumption is typically less than 1 μA. The transmitter is disabled during shutdown but the receiver remains functional. An epitaxial BiCMOS construction minimizes power consumption to 3 mW and also guards against latch-up. Overvoltage protection is provided allowing the receiver inputs to withstand continuous voltages in excess of ±30 V. In addition, all I-O pins have ESD protection to levels greater than 15 kV. The ADM101EARMZ-REEL7 is available in a 10-lead μSOIC package, which makes it ideal for serial communications in small, portable applications such as palmtop computers and mobile telephones, where a full, RS-232 serial interface is not required, but compact size and low power drain are paramount. The applications of the ADM101EARMZ-REEL7 include Mobile Telephones, Palmtop Computers, PDAs, Portable Instrumentation and GPS Receivers.

Parametrics

ADM101EARMZ-REEL7 absolute maximum ratings: (1)VCC: 6 V; (2)V–: +0.3 V to –6 V; (3)Input Voltages Driver Input TIN: –0.3 V to (VCC, +0.3 V); (4)Receiver Input RIN: ±30 V; (5)Output Voltages Driver Output TOUT: (VCC, +0.3 V) to (V–, –0.3 V); (6)Receiver Output ROUT: –0.3 V to (VCC +0.3 V); (7)Short Circuit Duration TOUT: Continuous; (8)Power Dissipation RM-10 (Derate 12 mW/℃ above 70℃): 1488mW; (9)Thermal Impedance: 135℃/W; (10)Operating Temperature Range Industrial (A Version): –40℃ to +85℃; (11)Storage Temperature Range: –65℃ to +150℃; (12)Lead Temperature Soldering Vapor Phase (60 sec): 215℃; (13)Infrared (15 sec): 220℃; (14)ESD Rating: >2000 V; (15)ESD Rating (I-O Pins): 15 kV.

Features

ADM101EARMZ-REEL7 features: (1)460 kbit/s Transmission Rate; (2)Single 5 V Power Supply; (3)Compatible with RS-232 Input/Output Levels; (4)0.1 μF Charge Pump Capacitors; (5)One Driver and One Receiver; (6)On-Board DC-DC Converter; (7)±4.2 V Output Swing with 5 V Supply; (8)Low Power BiCMOS: 500 μA ICC; (9)Ultralow Power (1 μA) Shutdown Mode; (10)10-Lead μSOIC Package.

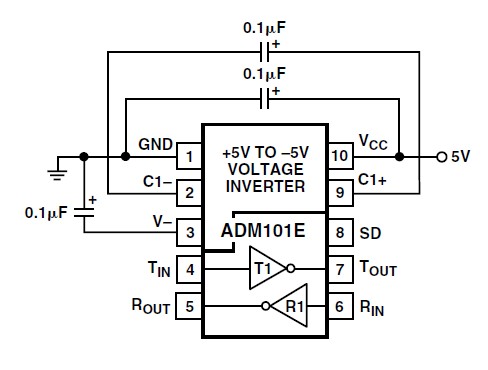

Diagrams
