ADG719BRMZ-REEL

ADG719BRMZ-REEL, Mux/SPDT Switch, MSOP, 30mA, 5.5V, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: ADG719BRMZ-REEL

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:ADG719BRMZ-REEL
US $0.30 - 0.50
Quantity:

piece

Product Summary

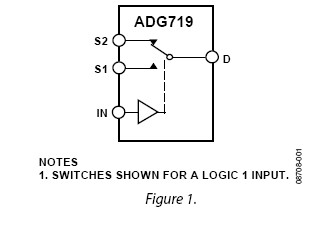

The ADG719BRMZ-REEL is a Mux/SPDT Switch. The ADG719BRMZ-REEL is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents. The ADG719BRMZ-REEL can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc. Each switch of the ADG719BRMZ-REEL conducts equally well in both directions when on. The ADG719BRMZ-REEL exhibits break-before-make switching action. Because of the advanced submicron process 3 dB bandwidths of greater than 200 MHz can be achieved. The ADG719BRMZ-REEL is available in a 6-lead SOT-23 package and an 8-lead MSOP package. The applications of the ADG719BRMZ-REEL include Battery-powered systems, Communication systems, Sample-and-hold systems, Audio signal routing, Video switching and Mechanical reed relay replacement.

Parametrics

ADG719BRMZ-REEL absolute maximum ratings: (1)VDD to GND: -0.3 V to +7 V; (2)Analog, Digital Inputs: -0.3 V to VDD + 0.3 V; (3)Peak Current, S or D: 100 mA (Pulsed at 1 ms, 10% duty cycle max); (4)Continuous Current, S or D: 30 mA; (5)Operating Temperature Range: -40℃ to +125℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: 150℃; (8)MSOP Package, Power Dissipation: 315 mW; (9)Lead Temperature, Soldering (10 sec): 300℃; (10)IR Reflow, Peak Temperature (<20 sec): 220℃; (11)ESD: 1 kV.

Features

ADG719BRMZ-REEL features: (1)1.8 V to 5.5 V single supply; (2)4 Ω (max) on resistance; (3)0.75 Ω (typ) on resistance flatness; (4)-3 dB bandwidth > 200 MHz; (5)Rail-to-rail operation; (6)6-Lead SOT-23 package and 8-Lead MSOP package.
