Product Summary
The AD9889BBSTZ-80 is a 165 MHz, high definition multimedia inter-face (HDMI) v. 1.2a transmitter. It supports HDTV formats up to 1080p, and computer graphic resolutions up to UXGA (1600 × 1200 @ 60 Hz). With the inclusion of HDCP, the AD9889BBSTZ-80 allows the secure transmission of protected content as specified by the HDCP v. 1.1 protocol. The applications of the AD9889BBSTZ-80 include DVD players and recorders, Digital set-top boxes, A/V receivers, Digital cameras and camcorders, HDMI repeater/splitter.
Parametrics
AD9889BBSTZ-80 absolute maximum ratings: (1)Digital Inputs: 0.0 V to 5V; (2)Digital Output Current: 20 mA; (3)Operating Temperature Range: -40℃ to +85℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Maximum Junction Temperature: 150℃; (6)Maximum Case Temperature: 150℃.
Features
AD9889BBSTZ-80 features: (1)HDMI./DVI transmitter compatible with HDMI v. 1.3, DVI v. 1.0, and HDCP v. 1.1; (2)Single 1.8 V power supply; (3)Video/audio inputs accept logic levels from 1.8 V to 3.3 V; (4)80-lead LQFP, Pb-free package; (5)64-lead LFCSP, Pb-free package; (6)76-ball CSP_BGA, Pb-free package.

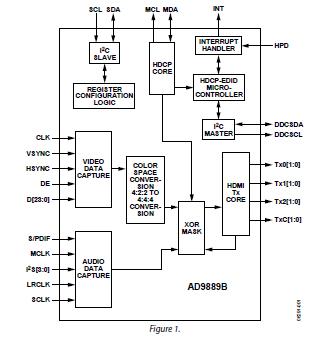

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9889BBSTZ-80 |
|
IC TRANSMITTER HDMI/DVI 80LQFP |
Data Sheet |
|
|
||||||||||||||||||
