Product Summary

The AD9512BCPZ is an 800 MHz Clock Distribution IC. It provides a multi-output clock distribution in a design that emphasizes low jitter and phase noise in order to maximize data converter performance. Other applications with demanding phase noise and jitter requirements also benefit from this part. The applications of the AD9512BCPZ are Low jitter, low phase noise clock distribution, Clocking high speed ADCs, DACs, DDS, DDC, DUC, MxFEs, High performance wireless transceivers, High performance instrumentation, Broadband infrastructure.

Parametrics

AD9512BCPZ absolute maximum ratings: (1)VS GND:-0.3 to +3.6V; (2)DSYNC/DSYNCB GND: -0.3 to VS+ 0.3V; (3)RSET GND: -0.3 to VS+ 0.3V; (4)CLK1, CLK1B, CLK2, CLK2B GND: -0.3 to VS+ 0.3V; (5)CLK1 CLK1B: -1.2 to +1.2V; (6)CLK2 CLK2B: -1.2 to +1.2V; (7)SCLK, SDIO, SDO, CSB GND: -0.3 to VS+ 0.3V; (8)OUT0, OUT1, OUT2, OUT3, OUT4 GND: -0.3 to VS+ 0.3V; (9)FUNCTION GND: -0.3 to VS+ 0.3V; (10)SYNC STATUS GND: -0.3 to VS+ 0.3V; (11)Junction Temperature: 150°C; (12)Storage Temperature: -65 to +150°C; (13)Lead Temperature (10 sec): 300°C.

Features

AD9512BCPZ features: (1)Two 1.5 GHz, differential clock inputs; (2)5 programmable dividers, 1 to 32, all integers; (3)Phase select for output-to-output coarse delay adjust; (4)3 independent 800 MHz LVPECL outputs Additive output jitter 225 fs rms; (5)2 independent 800 MHz/250 MHz LVDS/CMOS clock outputs Additive output jitter 275 fs rms; (6)Fine delay adjust on 1 output, 6-bit delay word; (7)4-wire or 3-wire serial control port; (8)Space-saving, 48-lead LFCSP.

Diagrams

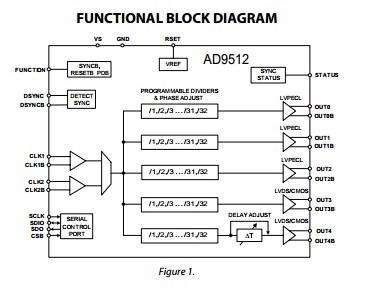

AD9512BCPZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9512BCPZ
AD9512BCPZ

IC CLOCK DIST 5OUT PLL 48LFCSP
Data Sheet
0-1: $11.05
1-10: $10.04
10-100: $8.54
100-250: $7.78
250-500: $7.28
500-1000: $6.70
AD9512BCPZ-REEL7
AD9512BCPZ-REEL7

IC CLOCK DIST 5OUT PLL 48LFCSP
Data Sheet
0-750: $6.93
