Product Summary
The AD8694ARZ is a low cost, dual rail-to-rail output, single-supply amplifier featuring low offset voltage, low input voltage and current noise, and wide signal bandwidth. The combination of low offset, low noise, very low input bias currents, and high speed makes this amplifier useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. The applications of the AD8694ARZ are (1)Photodiode amplification; (2)Battery-powered instrumentation; (3)Medical instruments; (4)Multipole filters; (5)Sensors; (6)Portable audio devices.
Parametrics
AD8694ARZ absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: VSS - 0.3 V to VDD + 0.3 V; (3)Differential Input Voltage: ±6 V; (4)Output Short-Circuit Duration to Gnd: Observe derating curves; (5)Storage Temperature Range: -65°C to +150°C; (6)Operating Temperature Range: -40°C to +125°C; (7)Junction Temperature Range: -65°C to +150°C; (8)Lead Temperature Range (Soldering, 60 s): 300°C.
Features
AD8694ARZ features: (1)Offset voltage: 400 μV typ; (2)Low offset voltage drift: 6 μV/°C maximum; (3)Very low input bias currents: 1 pA maximum; (4)Low noise: 8 nV/√Hz; (5)Low distortion: 0.0006%; (6)Wide bandwidth: 10 MHz; (7)Unity gain stable; (8)Single-supply operation: 2.7 V to 6 V.

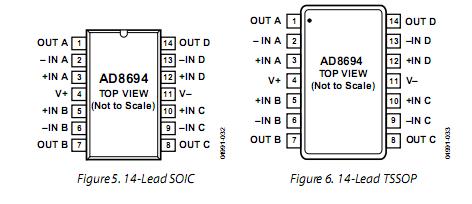

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8694ARZ |
|
IC OPAMP GP R-R CMOS QUAD 14SOIC |
Data Sheet |
|
|
||||||
|
AD8694ARZ-REEL |
|
IC OPAMP GP R-R CMOS QUAD 14SOIC |
Data Sheet |
|
|
||||||
|
AD8694ARZ-REEL7 |
|
IC OPAMP GP R-R CMOS QUAD 14SOIC |
Data Sheet |
|
|
||||||
