Product Summary
The AD8362ARUZ-REEL7 is a true rms-responding power detector that has a 65 dB measurement range. It is intended for use in a variety of high frequency communication systems and in instrumentation requiring an accurate response to signal power. It is easy to use, requiring only a single supply of 5 V and a few capacitors. It can operate from arbitrarily low frequencies to over 3.8 GHz and can accept inputs that have rms values from 1 mV to at least 1 V rms, with large crest factors, exceeding the requirements for accurate measurement of CDMA signals. Applications include Power amplifier linearization/control loops, Transmitter power controls, Transmitter signal strength indication (TSSI) and RF instrumentation.
Parametrics
AD8362ARUZ-REEL7 absolute maximum ratings: (1)Supply Voltage VPOS: 5.5 V; (2)Input Power (Into Input of Device): 15 dBm; (3)Equivalent Voltage: 2 V rms; (4)Internal Power Dissipation: 500 mW; (5)Maximum Junction Temperature: 125℃; (6)Operating Temperature Range: -40℃ to +85℃ ; (7)Storage Temperature Range: -65℃ to +150℃ ; (8)Lead Temperature (Soldering, 60 sec): 300℃.
Features
AD8362ARUZ-REEL7 features: (1)Complete fully calibrated measurement/control system; (2)Accurate rms-to-dc conversion from 50 Hz to 3.8 GHz; (3)Input dynamic range of >65 dB: -52 dBm to +8 dBm in 50Ω; (4)Waveform and modulation independent, such as GSM/CDMA/TDMA; (5)Linear-in-decibels output, scaled 50 mV/dB; (6)Law conformance error of 0.5 dB; (7)All functions temperature and supply stable; (8)Operates from 4.5 V to 5.5 V at 24 mA; (9)Power-down capability to 1.3 mW.

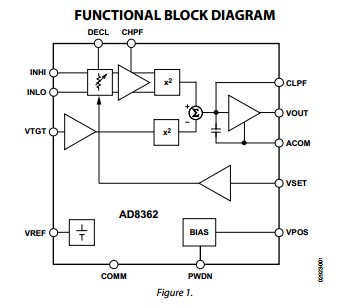

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8362ARUZ-REEL7 |
|
IC PWR DETECTOR 3.8GHZ 16-TSSOP |
Data Sheet |
|
|
||||||
 |
AD8362ARUZ-REEL71 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
