AD8312ACBZ-P7

AD8312ACBZ-P7, RF Detector, 50 MHz, 3.5 GHz, 45 dB, 5.5 V, WCSP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	2.50 / Piece
1001 ~ 10000 :	2.20 / Piece
10001 ~ 100000 :	2.00 / Piece

PartNumber:: AD8312ACBZ-P7

Brand:: Analog Devices Inc - ADI | Pack: WCSP | D/C: 13+

Availability:: Supply Ability: 100000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-04

From Other Seller

Part Number:AD8312ACBZ-P7
US $2.00 - 2.50
Quantity:

piece

Product Summary

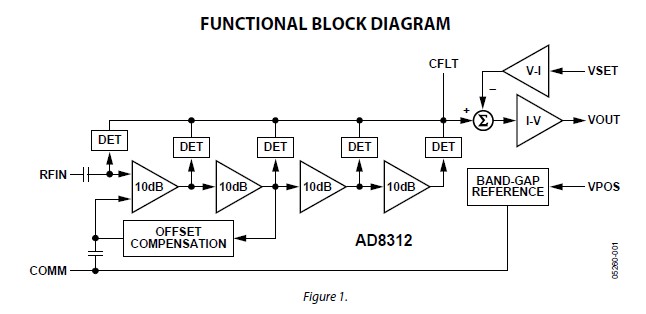

The AD8312ACBZ-P7 is a complete, low cost subsystem for the measurement of RF signals in the frequency range of 50 MHz to 3.5 GHz. It has a typical dynamic range of 45 dB and is intended for use in a wide variety of cellular handsets and other wireless devices. The AD8312ACBZ-P7 provides a wider dynamic range and better accuracy than possible using discrete diode detectors. In particular, its temperature stability is excellent over the full operating range of - 40°C to +85°C. Applications are (1)Cellular handsets (GSM, CDMA, WCDMA); (2)RSSI and TSSI for wireless terminal devices; (3)Transmitter power measurement.

Parametrics

AD8312ACBZ-P7 absolute maximum ratings: (1)Supply Voltage VPOS: 5.5 V; (2)VOUT, VSET: 0 V, VPOS; (3)Input Voltage: 1.6 V rms; (4)Equivalent Power: 17 dBm; (5)Internal Power Dissipation: 200 mW; (6)θJA (WLCSP): 200°C/W; (7)Maximum Junction Temperature: 125°C; (8)Operating Temperature Range: - 40°C to +85°C; (9)Storage Temperature Range: - 65°C to +150°C.

Features

AD8312ACBZ-P7 features: (1)Complete RF detector function; (2)Typical range: -45 dBm to 0 dBm, re 50 Ω; (3)Frequency response from 50 MHz to 3.5 GHz; (4)Temperature-stable linear-in-dB response Accurate to 3.5 GHz; (5)Rapid response: 85/120 ns (rise/fall); (6)Low power: 12 mW at 2.7 V.
