Product Summary

The AD7740YRMZ is a low-cost, ultrasmall synchronous Voltage-to-Frequency Converter (VFC). It works from a single 3.0 V to 3.6 V or 4.75 V to 5.25 V supply consuming 0.9 mA. The AD7740YRMZ is available in an 8-lead SOT-23 and also in an 8-lead microSOIC package. Small package, low cost and ease of use were major design goals for this product. The part contains an on-chip 2.5 V bandgap reference but the user may overdrive this using an external reference. This external reference range includes VDD. The applications of the AD7740YRMZ are (1)Isolation of High Common-Mode Voltages; (2)Low-Cost Analog-to-Digital Conversion; (3)Battery Monitoring; (4)Automotive Sensing.

Parametrics

AD7740YRMZ absolute maximum ratings: (1)VDD to GND: –0.3V to +7 V; (2)Analog Input Voltage to GND: –0.3V to VDD + 0.3 V; (3)Reference Input Voltage to GND: –0.3 V to VDD + 0.3 V; (4)Logic Input Voltage to GND: –0.3 V to VDD + 0.3 V; (5)FOUT Voltage to GND: –0.3 V to VDD + 0.3 V; (6)Operating Temperature Range, Commercial (K Version): 0°C to +85°C; Automotive (Y Version): –40°C to +105°C; (7)Storage Temperature Range: –65°C to +150°C; (8)Junction Temperature (TJ Max): 150°C; (9)Power Dissipation: (TJ Max – TA)/θJA; (10)θJA Thermal Impedance: 240°C/W; (11)Lead Temperature (10 secs): 300°C; (12)Reflow Soldering, Peak Temperature:220 + 5/0°C; Time at Peak Temperature: 10 sec to 40 sec.

Features

AD7740YRMZ features: (1)Synchronous Operation; (2)Full-Scale Frequency Set by External System Clock; (3)8-Lead SOT-23 and 8-Lead microSOIC Packages; (4)3 V or 5 V Operation; (5)Low Power: 3 mW (Typ); (6)Nominal Input Range: 0 to VREF; (7)True –150 mV Capability Without Charge Pump; (8)VREF Range: 2.5 V to VDD; (9)Internal 2.5 V Reference; (10)1 MHz Max Input Frequency; (11)Selectable High Impedance Buffered Input; (12)Minimal External Components Required.

Diagrams

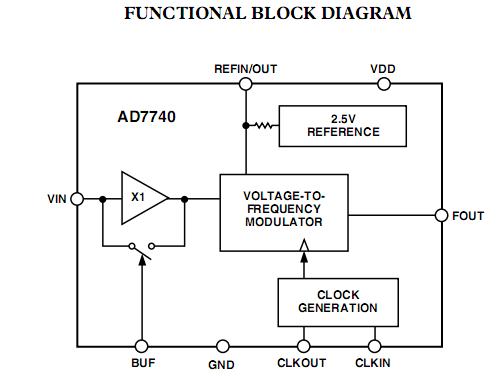

AD7740YRMZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7740YRMZ
AD7740YRMZ


IC CONVERTER VOLT TO FREQ 8-MSOP

Data Sheet

0-1: $1.74
1-10: $1.55
10-25: $1.40
25-100: $1.27
100-250: $1.15
250-500: $1.03
500-1000: $0.87
1000-2500: $0.83
AD7740YRMZ-REEL
AD7740YRMZ-REEL


IC CONVERTER VOLT TO FREQ 8MSOP

Data Sheet

0-3000: $0.83
AD7740YRMZ-REEL7
AD7740YRMZ-REEL7


IC CONVERTER VOLT TO FREQ 8MSOP

Data Sheet

0-1: $1.79
1-10: $1.60
10-25: $1.44
25-100: $1.31
100-250: $1.19
250-500: $1.06
