Product Summary

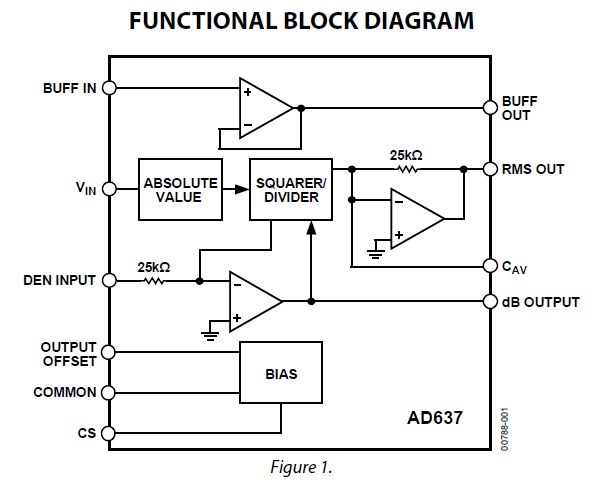

The AD637JRZ-RL is a RMS-to-DC Converter. The AD637JRZ-RL computes the true rms value of any complex waveform. It offers performance that is unprecedented in integrated circuit rms-to-dc converters and comparable to discrete and modular techniques in accuracy, bandwidth, and dynamic range. A crest factor compensation scheme in the AD637JRZ-RL permits measurements of signals with crest factors of up to 10 with less than 1% additional error. The wide band-width of the AD637JRZ-RL permits the measurement of signals up to 600 kHz with inputs of 200 mV rms and up to 8 MHz when the input levels are above 1 V rms. As with previous monolithic rms converters from Analog Devices, Inc., the AD637JRZ-RL has an auxiliary dB output available to users. The logarithm of the rms output signal is brought out to a separate pin, allowing direct dB measurement with a useful range of 60 dB. An externally programmed reference current allows the user to select the 0 dB reference voltage to correspond to any level between 0.1 V and 2.0 V rms.

Parametrics

AD637JRZ-RL absolute maximum ratings: (1)ESD Rating: 500 V; (2)Supply Voltage: ±18 V dc; (3)Internal Quiescent Power Dissipation: 108 mW; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (Soldering 10 sec): 300℃; (7)Rated Operating Temperature Range: 0℃ to 70℃.

Features

AD637JRZ-RL features: (1)High accuracy 0.02% maximum nonlinearity, 0 V to 2 V rms input; (2)0.10% additional error to crest factor of 3; (3)Wide bandwidth 8 MHz at 2 V rms input; (4)600 kHz at 100 mV rms; (5)Computes True rms; (6)Square; (7)Mean square; (8)Absolute value; (9)dB output (60 dB range); (10)Chip select/power-down feature allows Analog three-state operation; (11)Quiescent current reduction from 2.2 mA to 350 μA; (12)14-lead SBDIP, 14-lead low cost CERDIP, and 16-lead SOIC_W.
