Product Summary

The AD5391BSTZ-3 is a D/A Converter. The AD5391BSTZ-3 is complete single-supply, 16-channel, 14-bit and 12-bit DACs, respectively. All channels have an on-chip output amplifier with rail-to-rail operation. All devices include an internal 1.25/2.5 V, 10 ppm/℃ reference, an on-chip channel monitor function that multiplexes the analog outputs to a common MON_OUT pin for external monitoring, and an output amplifier boost mode that optimizes the output amplifier slew rate. The applications of the AD5391BSTZ-3 include Instrumentation and industrial control, Power amplifier control, Level setting (ATE), Control systems, Microelectromechanical systems (MEMs), Variable optical attenuators (VOAs) and Optical transceivers (MSA 300, XFP).

Parametrics

AD5391BSTZ-3 absolute maximum ratings: (1)AVDD to AGND: -0.3 V to +7 V; (2)DVDD to DGND: -0.3 V to +7 V; (3)Digital Inputs to DGND: -0.3 V to DVDD + 0.3 V; (4)Digital Outputs to DGND: -0.3 V to DVDD + 0.3 V; (5)VREF to AGND: -0.3 V to +7 V; (6)REFOUT to AGND: -0.3 V to +7 V; (7)AGND to DGND: -0.3 V to +0.3 V; (8)VOUTX to AGND: -0.3 V to AVDD + 0.3 V; (9)Operating Temperature Range Commercial (B Version): -40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Junction Temperature : 150℃; (12)64-Lead LFCSP Package, θJA: 22℃/W; (13)52-lLad LQFP Package, θJA: 38℃/W; (14)Reflow Soldering Peak Temperature: 230℃.

Features

AD5391BSTZ-3 features: (1)AD5390: 16-channel, 14-bit voltage output DAC; (2)AD5391: 16-channel, 12-bit voltage output DAC; (3)AD5392: 8-channel, 14-bit voltage output DAC; (4)Guaranteed monotonic; (5)On-chip 1.25 V/2.5 V, 10 ppm/ ℃reference; (6)Temperature range: -40℃ to +85℃; (7)Rail-to-rail output amplifier; (8)Power-down mode.

Diagrams

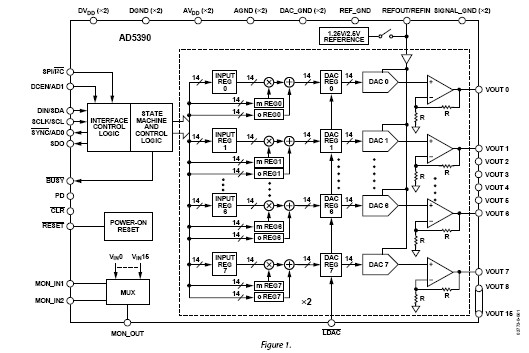

AD5391BSTZ-3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD5391BSTZ-3
AD5391BSTZ-3


IC DAC 12BIT 16CHAN 3V 52LQFP

Data Sheet

0-1: $20.59
1-10: $19.25
10-100: $16.69
100-250: $15.58
250-500: $14.84
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD5300
AD5300

Other


Data Sheet

Negotiable
AD5300*
AD5300*

Other


Data Sheet

Negotiable
AD5300BRM
AD5300BRM


IC DAC 8BIT R-R 2.7-5.5V 8-MSOP

Data Sheet

0-150: $1.70
AD5300BRM-REEL
AD5300BRM-REEL

Analog Devices Inc.

IC DAC 8BIT R-R 2.7-5.5V 8-MSOP

Data Sheet

Negotiable
AD5300BRM-REEL7
AD5300BRM-REEL7

Analog Devices Inc

IC DAC 8BIT R-R 2.7-5.5V 8-MSOP

Data Sheet

1-1000: $1.29
AD5300BRMZ
AD5300BRMZ


IC DAC 8BIT R-R 2.7-5.5V 8-MSOP

Data Sheet

0-1: $2.03
1-10: $1.81
10-25: $1.63
25-100: $1.48
100-250: $1.34
250-500: $1.20
500-1000: $1.01
1000-2500: $0.96
