AD5322BRMZ-REEL7

AD5322BRMZ-REEL7, Digital-to-Analog Converter, MSOP, 2.5V, 230μA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AD5322BRMZ-REEL7

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:AD5322BRMZ-REEL7
US $0.30 - 0.50
Quantity:

piece

Product Summary

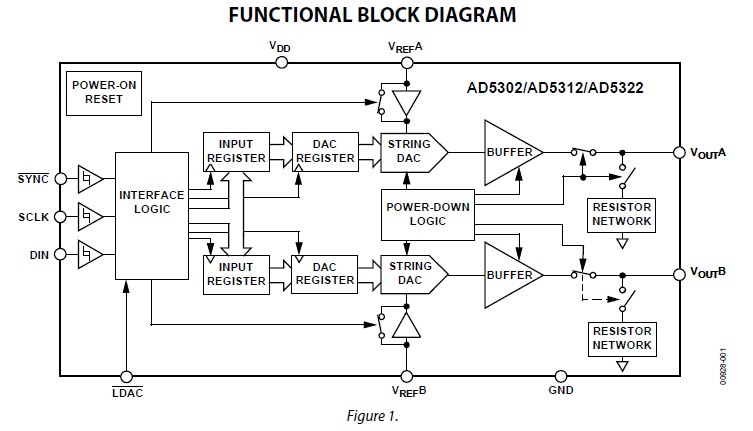

The AD5322BRMZ-REEL7 is a Digital-to-Analog Converter. The AD5322BRMZ-REEL7 is buffered voltage output DACs in a 10-lead MSOP that operate from a single 2.5 V to 5.5 V supply, consuming 230 μA at 3 V. Its on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/μs. The applications of the AD5322BRMZ-REEL7 include Portable battery-powered instruments, Digital gain and offset adjustment, Programmable voltage and current sources and Programmable attenuators.

Parametrics

AD5322BRMZ-REEL7 absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)Digital Input Voltage to GND: –0.3 V to VDD + 0.3 V; (3)Reference Input Voltage to GND: –0.3 V to VDD + 0.3 V; (4)VOUTA, VOUTB to GND: –0.3 V to VDD + 0.3 V; (5)Operating Temperature Range Industrial (A, B Version): –40℃ to +105℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Junction Temperature (TJ max): +150℃; (8)10-Lead MSOP Power Dissipation: (TJ max – TA)/θJA; (9)θJA Thermal Impedance: 206℃/W; (10)θJC Thermal Impedance: 44℃/W.

Features

AD5322BRMZ-REEL7 features: (1)Power-down to 200 nA @ 5 V, 50 nA @ 3 V; (2)2.5 V to 5.5 V power supply; (3)Double-buffered input logic; (4)Guaranteed monotonic by design over all codes; (5)Buffered/Unbuffered reference input options; (6)0 V to VREF output voltage; (7)Power-on-reset to 0 V; (8)Simultaneous update of DAC outputs via LDAC; (9)Low power serial interface with Schmitt-triggered inputs; (10)On-chip rail-to-rail output buffer amplifiers; (11)Qualified for automotive applications.
