AD5311BRMZ-REEL7

voltage-output DAC, buffered, 120 μA, 3 V, MSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AD5311BRMZ-REEL7

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:AD5311BRMZ-REEL7
US $0.30 - 0.50
Quantity:

piece

Product Summary

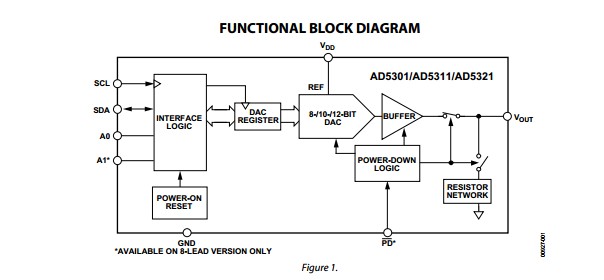

The AD5311BRMZ-REEL7 is a single 8-/10-/12-bit, buffered, voltage-output DAC that operates from a single 2.5 V to 5.5 V supply, consuming 120 μA at 3 V. The on-chip output amplifier allows rail-to-rail output swing with a slew rate of 0.7 V/μs. It uses a 2-wire serial interface that operates at clock rates up to 400 kHz. Multiple devices can share the same bus. Applications include Portable battery-powered instruments, Digital gain and offset adjustment, Programmable voltage and current sources and Programmable attenuators.

Parametrics

AD5311BRMZ-REEL7 absolute maximum ratings: (1)VDD to GND: -0.3 V to +7 V; (2)SCL, SDA to GND: -0.3 V to VDD + 0.3 V; (3)PD, A1, A0 to GND: -0.3 V to VDD + 0.3 V; (4)VOUT to GND: -0.3 V to VDD + 0.3 V; (5)Storage Temperature Range: -65℃ to +150℃; (6)Junction Temperature: 150℃; (7)Lead Temperature: JEDEC Industry Standard; (8)Soldering: J-STD-020.

Features

AD5311BRMZ-REEL7 features: (1)buffered voltage output 10-bit DAC; (2)6-lead SOT-23 and 8-lead MSOP packages; (3)Micropower operation: 120 μA @ 3 V; (4)2-wire serial interface; (5)Data readback capability; (6)2.5 V to 5.5 V power supply; (7)Guaranteed monotonic by design over all codes; (8)Power-down to 50 nA @ 3 V; (9)Reference derived from power supply; (10)Power-on reset to 0 V; (11)On-chip rail-to-rail output buffer amplifier; (12)3 power-down functions.
