Product Summary

The AD5310BRM is is a single, 10-bit buffered voltage out DAC that operates from a single +2.7 V to +5.5 V supply consuming 115 mA at 3 V. It is suitable for portable battery powered instruments, digital gain and offset adjustment, programmable voltage and current sources and programmable attenuators.

Parametrics

AD5310BRM absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)Digital Input Voltage to GND:–0.3 V to VDD + 0.3 V; (3)VOUT to GND: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range; (5)Industrial (B Version): –40℃ to +105℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Junction Temperature (TJ Max): +150℃.

Features

AD5310BRM features: (1)Single 10-Bit DAC; (2)6-Lead SOT-23 and 8-Lead mSOIC Packages; (3)Micropower Operation: 140 mA @ 5 V; (4)Power-Down to 200 nA @ 5 V, 50 nA @ 3 V; (5)+2.7 V to +5.5 V Power Supply; (6)Guaranteed Monotonic by Design; (7)Reference Derived from Power Supply; (8)Power-On-Reset to Zero Volts; (9)Three Power-Down Functions; (10)Low Power Serial Interface with Schmitt-Triggered Inputs; (11)On-Chip Output Buffer Amplifier, Rail-to-Rail Operation.

Diagrams

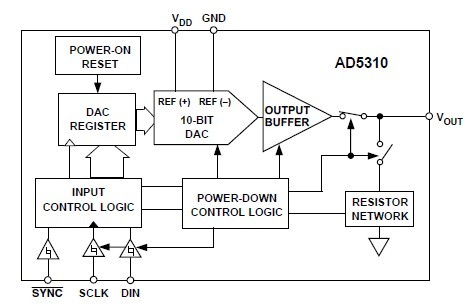

AD5310BRM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD5310BRMZ
AD5310BRMZ

IC DAC 10BIT R-R W/BUFF 8-MSOP
Data Sheet
0-1: $2.75
1-10: $2.46
10-25: $2.21
25-100: $2.01
100-250: $1.82
250-500: $1.63
500-1000: $1.38
1000-2500: $1.31
AD5310BRMZ-REEL
AD5310BRMZ-REEL

IC DAC 10BIT R-R W/BUFF 8-MSOP
Data Sheet
Negotiable
AD5310BRMZ-REEL7
AD5310BRMZ-REEL7

IC DAC 10BIT R-R W/BUFF 8-MSOP
Data Sheet
0-1000: $1.38
AD5310BRM-REEL7
AD5310BRM-REEL7

IC DAC 10BIT R-R W/BUFF 8-MSOP
Data Sheet
Negotiable
AD5310BRM-REEL
AD5310BRM-REEL

IC DAC 10BIT R-R W/BUFF 8-MSOP
Data Sheet
0-3000: $1.52
AD5310BRM
AD5310BRM

IC DAC 10BIT R-R W/BUFF 8-MSOP
Data Sheet
0-100: $2.34
