74LVT125PW

74LVT125PW, high-performance, BiCMOS product, TSSOP, 50mA, -0.5 to 7V, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: 74LVT125PW

Brand:: NXP Semiconductors - nxp | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:74LVT125PW
US $0.30 - 0.50
Quantity:

piece

Product Summary

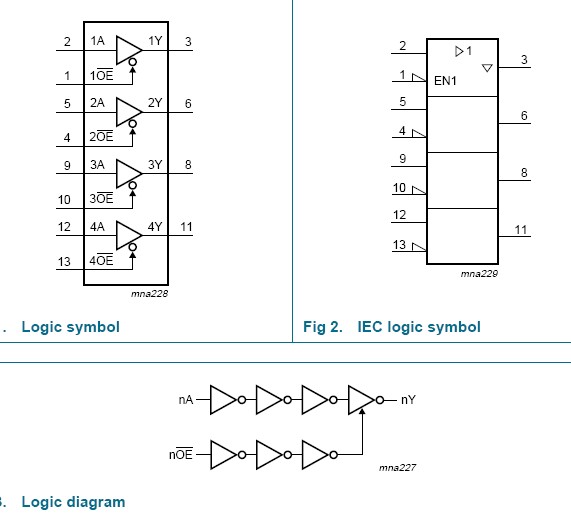

The 74LVT125PW is a high-performance BiCMOS product designed for VCC operation at 3.3 V. The 74LVT125PW combines low static and dynamic power dissipation with high speed and high output drive. The 74LVT125PW is a quad buffer that is ideal for driving bus lines. The device features four output enable inputs (1OE, 2OE, 3OE and 4OE), each controlling one of the 3-state outputs.

Parametrics

74LVT125PW absolute maximum ratings: (1)VCC supply voltage: -0.5 to +4.6 V; (2)VI input voltage [1]: -0.5 to +7.0 V; (3)VO output voltage output in OFF-state or HIGH-state[1]: -0.5 to +7.0 V; (4)IIK input diode current VI＜0 V: 50 mA; (5)IOK output diode current VO＜0 V: 50 mA; (6)IO output current output in LOW-state: 128 mA; (7)output in HIGH-state: 64mA; (8)Tstg storage temperature: -65 to +150℃; (9)Tj junction temperature [2]: - 150℃.

Features

74LVT125PW features: (1)Quad bus interface; (2)3-state buffers; (3)Output capability: +64 mA and -32 mA; (4)TTL input and output switching levels; (5)Input and output interface capability to systems at 5 V supply; (6)Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs; (7)Live insertion and extraction permitted; (8)No bus current loading when output is tied to 5 V bus; (9)Power-up 3-state; (10)Latch-up protection: JESD78: exceeds 500 mA; (11)ESD protection: MIL STD 883 method 3015: exceeds 2000 V; (12)Machine model: exceeds 200 V.
