The 74LVCU04AD,112 is a general purpose hex inverter. Each of the six inverters is a single stage with unbuffered outputs.
Parametrics
74LVCU04AD,112 absolute maximum ratings: (1)VCC supply voltage: -0.5 to +6.5V; (2)IIK input clamping current: -50 to -mA; (3)VI input voltage: -0.5 to +6.5V; (4)IOK output clamping current: -50mA; (5)VO output voltage: -0.5VCC to + 0.5V; (6)IO output current: -50mA; (7)ICC supply current: -100mA; (8)IGND ground current: -100mA; (9)Tstg storage temperature: -65 to +150 °C; (10)Ptot total power dissipation: -40 to +125°C.
Features
74LVCU04AD,112 features: (1)Wide supply voltage range from 1.2 Vto3.6V; (2)Inputs accept voltages up to 5.5V; (3)CMOS low power consumption; (4)Direct interface with TTL levels; (5)Complies with JEDEC standard: JESD8-7A (1.65Vto1.95V); JESD8-5A (2.3Vto2.7V); JESD8-C/JESD36 (2.7Vto3.6V); (6)ESD protection: HBM JESD22-A114F exceeds 2000V; MM JESD22-A115-B exceeds 200V; CDM JESD22-C101E exceeds 1000V; (7)Specified from -40 to +85 °C and -40 to +125 °C.

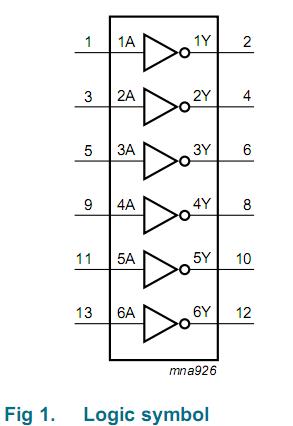

Diagrams
