74LVC245APW,118

octal bus transceiver, 5V, ±50mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.10 / Piece
1000 ~ 10000 :	0.08 / Piece
10000 ~ 100000 :	0.06 / Piece

PartNumber:: 74LVC245APW,118

Brand:: NXP Semiconductors - nxp | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-08

From Other Seller

Part Number:74LVC245APW,118
US $0.06 - 0.10
Quantity:

piece

Product Summary

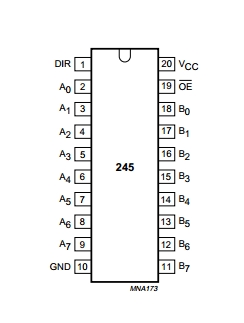

The 74LVC245APW is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to Most advanced CMOS compatible TTL families. The 74LVC245APW is an octal transceiver with non-inverting 3-state bus compatible outputs in both send and receive directions. The 74LVC245APW has an output enable (OE) input for easy cascading and a send/receive (DIR) input for direction control.

Parametrics

74LVC245APW absolute maximum ratings: (1) supply voltage Vcc: -0.5 to +6.5V; (2) input diode current IIK: -50mA (VI<0) ; (3) output diode current IOK: ±50mA (VO>VCC or VO<0) : (4) output voltage Vo: -0.5 to Vcc +0.5V (output HIGH or LOW state) , -0.5 to +6.5V (output 3-state) ; (5) output source or sink current Io: ±50mA ( VO=0 to VCC) ; (6) VCC or GND current Icc, IGND: ±100mA; (7) storage temperature Tstg: -65 to +150°C; (8) power dissipation Ptot: 500mW (Tamb= -40 to +125 °C) .

Features

74LVC245APW features: (1) 5V tolerant inputs/outputs for interfacing with 5V logic; (2) Wide supply voltage range from 1.2 to 3.6 V; (3) CMOS low power consumption; (4) Direct interface with TTL levels; (5) Inputs accept voltages up to 5.5V; (6) High-impedance when V CC=0V; (7) Complies with JEDEC standard no. 8-1A; (8) Specified from -40 to +85°C and -40 to +125 °C.
