74LVC14AD,112

74LVC14AD,112, low power, low-voltage Si-gate CMOS device, SQP, 3.6V, -50mA, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: 74LVC14AD,112

Brand:: NXP - NXP | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-26

From Other Seller

Part Number:74LVC14AD,112
US $0.30 - 0.50
Quantity:

piece

Product Summary

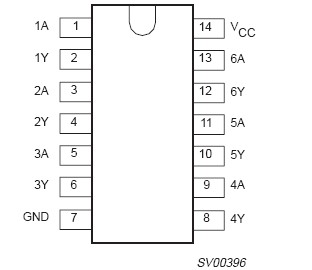

The 74LVC14AD,112 is a high-performance, low power, low-voltage Si-gate CMOS device and superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V environment. The 74LVC14AD,112 provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The applications of the 74LVC14AD,112 include Wave and pulse shapers for highly noisy environments, Astable multivibrators, Monostable multivibrators.

Parametrics

74LVC14AD,112 absolute maximum ratings: (1)DC supply voltage (for max. speed performance): 2.7 to 3.6V; (2)DC supply voltage (for low-voltage applications): 1.2 to 3.6V; (3)VI DC input voltage range: 0 to 5.5 V; (4)DC output voltage range; output HIGH or LOW state: 0 to VCC V; (5)DC input voltage range; output 3-State: 0 to 5.5V; (6)Tamb Operating free-air temperature range: –40 to +85℃.

Features

74LVC14AD,112 features: (1)Wide supply voltage range of: 1.2 V to 3.6 V; (2)In accordance with JEDEC standard no. 8-1A; (3)Inputs accept voltages up to 5.5 V; (4)CMOS low power consumption; (5)Direct interface with TTL levels.
