74LVC04APW

74LVC04APW, Hex inverter, TSSOP, -0.5 to +6.5 V, 100mA, 500mW, NXP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.10 / Piece
1000 ~ 10000 :	0.08 / Piece
10000 ~ 100000 :	0.06 / Piece

PartNumber:: 74LVC04APW

Brand:: NXP - NXP | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:74LVC04APW
US $0.06 - 0.10
Quantity:

piece

Product Summary

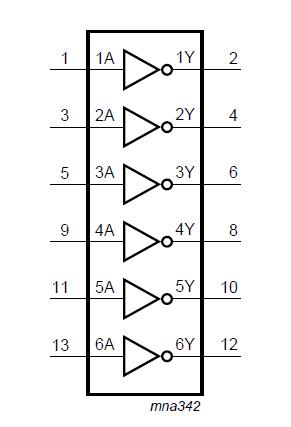

The 74LVC04APW is a Hex inverter. The 74LVC04APW provides six inverting buffers. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of the device as translators in mixed 3.3 V and 5 V applications.

Parametrics

74LVC04APW absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +6.5 V; (2)IIK, input clamping current VI < 0: -50mA; (3)VI, input voltage: -0.5 +6.5 V; (4)IOK, output clamping current VO > VCC or VO < 0: ±50 mA; (5)VO, output voltage: -0.5 VCC + 0.5 V; (6)IO, output current VO = 0 V to VCC: ±50 mA; (7)ICC, supply current: 100 mA; (8)IGND, ground current: -100 mA; (9)Tstg, storage temperature: -65 to +150℃; (10)Ptot, total power dissipation Tamb = -40℃ to +125℃: 500 mW.

Features

74LVC04APW features: (1)5 V tolerant inputs for interfacing with 5 V logic; (2)Wide supply voltage range from 1.2 V to 3.6 V; (3)CMOS low power consumption; (4)Direct interface with TTL levels; (5)Inputs accept voltages up to 5.5 V; (6)Complies with JEDEC standard: JESD8-7A (1.65 V to 1.95 V); JESD8-5A (2.3 V to 2.7 V); JESD8-C/JESD36 (2.7 V to 3.6 V); (7)ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-B exceeds 200 V; CDM JESD22-C101E exceeds 1000 V; (8)Specified from -40℃ to +85℃ and -40℃ to +125℃.
