74LV164PW,112, serial-in/parallel-out shift register, 7.0 V, 20 mA, 400 mW, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: 74LV164PW,112

Brand:: NXP Semiconductors - nxp | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-14

From Other Seller

Part Number:74LV164PW,112
US $0.30 - 0.50
Quantity:

piece

Product Summary

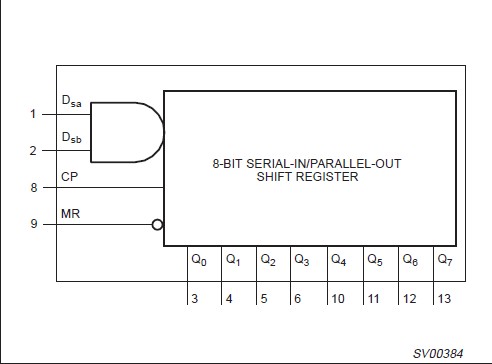

The 74LV164PW,112 is a low-voltage Si-gate CMOS device and is pin and function compatible with the 74HC/HCT164. The 74LV164PW,112 is an 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (Dsa or Dsb); either input can be used as an active HIGH enable for data entry through the other input. Both inputs must be connected together or an unused input must be tied HIGH.

Parametrics

74LV164PW,112 absolute maximum ratings: (1)DC supply voltage: –0.5 to +7.0 V; (2)DC input diode current VI < –0.5 or VI > VCC + 0.5V: 20 mA; (3)DC output diode current VO < –0.5 or VO > VCC + 0.5V: 50 mA; (4)DC output source or sink current – standard outputs –0.5V < VO < VCC + 0.5V: 25 mA; (5)DC VCC or GND current for types with –standard outputs: 50 mA; (6)Storage temperature range: –65 to +150 °C; (7)Power dissipation per package for temperature range: -40 to +125°C –plastic DIL above +70°C derate linearly with 12mW/K: 750 mW; (8)Power dissipation per package for temperature range: -40 to +125°C –plastic mini-pack (SO)above +70°C derate linearly with 8 mW/K: 500 mW; (9)Power dissipation per package for temperature range: -40 to +125°C –plastic shrink mini-pack (SSOP and TSSOP)above +60°C derate linearly with 5.5 mW/K: 400 mW.
