Product Summary

The 74HCT08D is a 2-input AND gate. The 74HCT08D is a high-speed Si-gate CMOS device and is a pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT08D provides the 2-input AND function.

Parametrics

74HCT08D absolute maximum ratings: (1)supply voltage: -0.5V to +7.0V; (2)input diode current (VI＜-0.5 V or VI＞VCC + 0.5V): ±20mA; (3)output diode current (VI＜-0.5 V or VI＞VCC + 0.5V): ±20mA; (4)output source or sink current (-0.5 V＜VO＜VCC + 0.5 V): ±25mA; (5)VCC or GND current: ±50mA; (6)storage temperature: -65℃ to 150℃; (7) power dissipation: DIP14 package, 750mW.

Features

74HCT08D features: (1) Complies with JEDEC standard no. 8-1A; (2) ESD protection: HBM EIA/JESD22-A114-A exceeds 2000V, MM EIA/JESD22-A115-A exceeds 200 V.; (3) Specified from -40℃ to +85℃ and -40℃ to +125℃.

Diagrams

74HCT08D Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

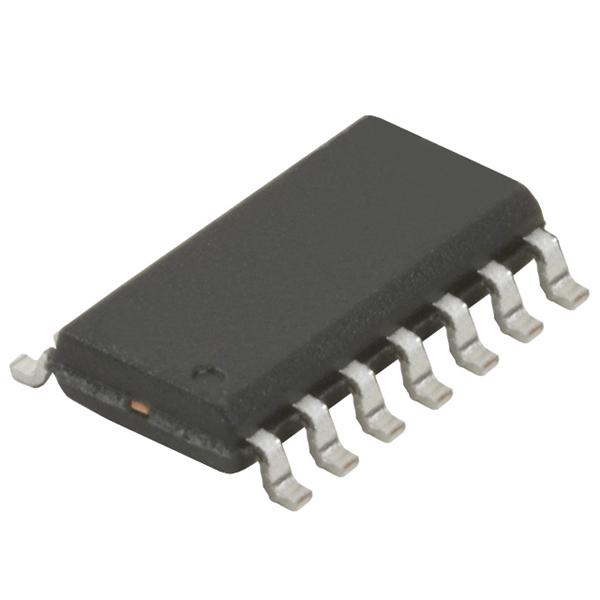

74HCT08D,652
74HCT08D,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND GATE
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.05
74HCT08D,653
74HCT08D,653
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-IN AND GATE
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.05
74HCT08DB,118
74HCT08DB,118
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND
Data Sheet
0-1: $0.07
1-25: $0.06
25-100: $0.05
100-250: $0.05
74HCT08DR2G
74HCT08DR2G
ON Semiconductor
Gates (AND / NAND / OR / NOR) QUAD 2 INPT AND GATE
Data Sheet
0-1: $0.26
1-25: $0.17
25-100: $0.14
100-500: $0.09
74HCT08DB,112
74HCT08DB,112
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.14
100-250: $0.11

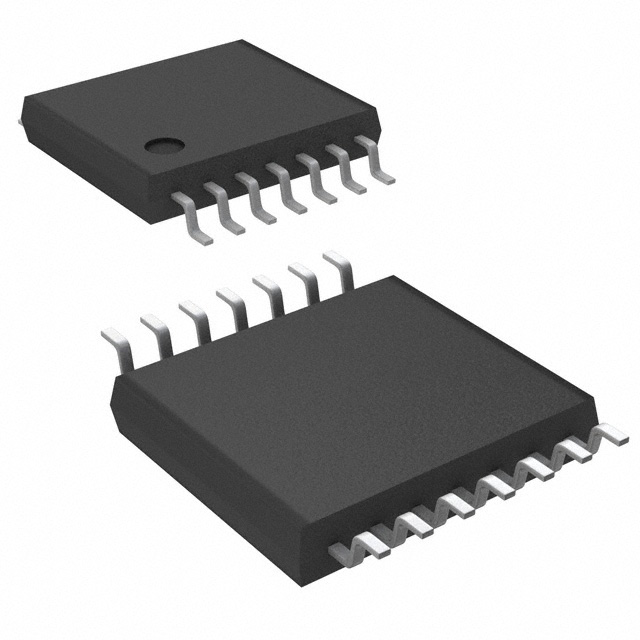

74HCT08DTR2G
74HCT08DTR2G

IC GATE AND QUAD 2INP 14-TSSOP
Data Sheet
Negotiable
