Product Summary
The 74HC4053D is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. The 74HC4053D is specified in compliance with JEDEC standard no. 7A. Applications of the 4HC4053D include: Analog multiplexing and demultiplexing, Digital multiplexing and demultiplexing and Signal gating.
Parametrics
74HC4053D limited ratings: (1) supply voltage Vcc: -0.5 to +11V; (2) input clamping current IIK: ±20mA (VI< -0.5V or VI>VCC+ 0.5V) ; (3) switch clamping current: ±20mA ( VS< -0.5V or VS>VCC+ 0.5V) ; (4) switch current Iss: ±25mA (-0.5V < VS<VCC+ 0.5V) ; (5) storage temperature: -65 to 150° C; (6) power dissipation per switch ps: 100mW.
Features
74HC4053D features: (1) Low ON resistance: 80Ω (typical) at Vcc-VEE=4.5V, 70Ω (typical) at Vcc-VEE=6.0V, 60Ω (typical) at Vcc-VEE=9.0V; (2) Logic level translation; (3) Complies with JEDEC standard no. 7A; (4) Multiple package options; (5) Specified from -40°Cto+85 °C and from -40°C to +125°C.

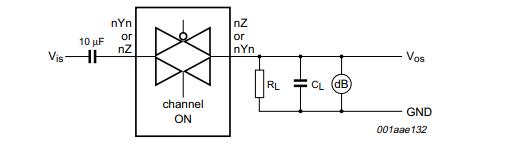

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC4053D,653 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers TRIPLE 2-CHANNEL MUX/DEMUX |
Data Sheet |
|
|
||||||||||||
