Product Summary
The 74HC244PW is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC244PW is specified in compliance with JEDEC standard no. 7A. The 74HC244PW is octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high impedance OFF-state.
Features
74HC244PW features of MP2249DN can be summarized as (1)Output capability: bus driver; (2)ICC category: MSI.

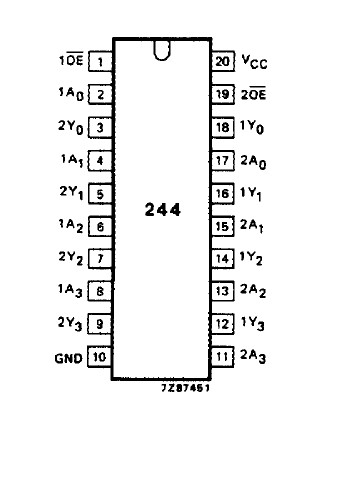

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC244PW,112 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HC244PW,118 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
