74HC164B

74HC164B, 8 bit SIPO shift register, DIP, -0.5 to +7 V, ± 20 mA, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: 74HC164B

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:74HC164B
US $3.00 - 5.00
Quantity:

piece

Product Summary

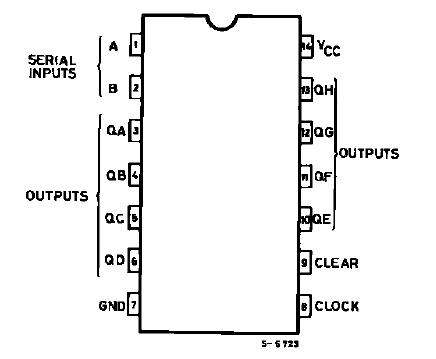

The 74HC164B is a high speed CMOS 8 bit SIPO shift register fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The 74HC164B is an 8 bit shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (A or B), either of these inputs can be used as an active high enable for data entry through the other input.

Parametrics

74HC164B absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +7 V; (2)VI, DC Input Voltage: -0.5 to VCC + 0.5 V; (3)VO, DC Output Voltage: -0.5 to VCC + 0.5 V; (4)IIK, DC Input Diode Current: ± 20 mA; (5)IOK, DC Output Diode Current: ± 20 mA; (6)IO, DC Output Source Sink Current Per Output Pin: ±25 mA; (7)ICC or IGND, DC VCC or Ground Current: ±50 mA; (8)PD, Power Dissipation: 500mW; (9)Tstg, Storage Temperature: -65 to +150℃; (10)TL, Lead Temperature (10 sec): 300℃.

Features

74HC164B features: (1)High speed, tPD = 15 ns (TYP.) AT VCC = 5 V; (2)Lowpower dissipation, ICC = 4 mA (MAX.) AT TA = 25℃; (3)Output drive capability, 10 LSTTL LOADS; (4)Balancedpropagation delays, tPLH = tPHL; (5)Symmetrical output impedance, IOL = zIOHz = 4 mA (MIN.); (6)High noise immunity, VNIH = VNIL = 28 % VCC (MIN.); (7)Wide operating voltage range, VCC (OPR) = 2 V TO 6 V; (8)Pin and function compatible with 54/74LS164.
