Product Summary
The 74F244SCX is a Line Driver with 3-STATE Outputs. It is designed to be employed as memory and address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC and board density.
Parametrics
74F244SCX absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature under Bias: -55℃ to +125℃; (3)Junction Temperature under Bias: -55℃ to +150℃; (4)VCC Pin Potential to Ground Pin: -0.5V to +7.0V; (5)Input Voltage: -0.5V to +7.0V; (6)Input Current: -30 mA to +5.0 mA; (7)Voltage Applied to Output in HIGH State (with VCC = 0V) Standard Output: -0.5V to VCC, 3-STATE Output: -0.5V to +5.5V; (8)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (9)ESD Last Passing Voltage (Min): 4000V.
Features
74F244SCX features: (1)3-STATE outputs drive bus lines or buffer memory address registers; (2)Outputs sink 64 mA (48 mA mil); (3)12 mA source current; (4)Input clamp diodes limit high-speed termination effects.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74F244SCX |
|
IC BUFFER/DRIVER DUAL 20SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
74F20 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

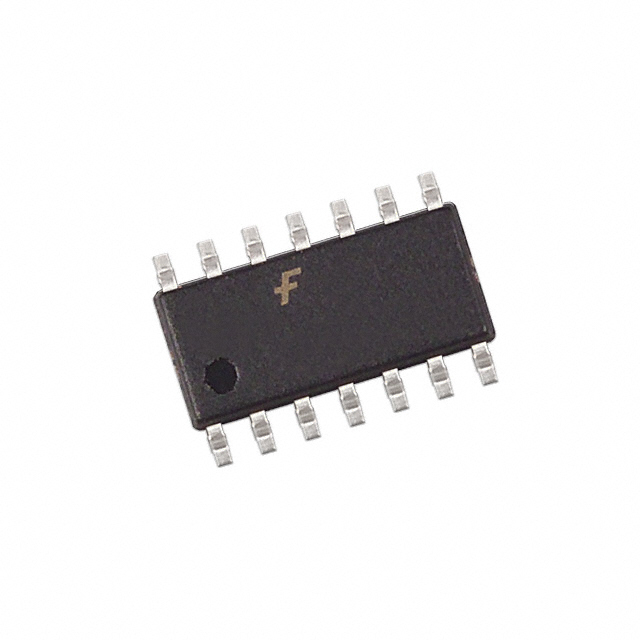

74F20SC |
|
